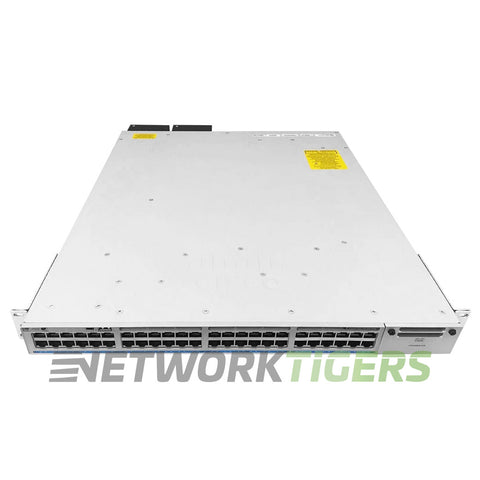

A NEW Cisco Catalyst C9300-48UXM-A (Network Advantage version), supplied in open box, gives wiring closets 48 UPOE ports, 36 at up to 2.5G and 12 at up to 10G, plus a module slot for uplinks.
- PoE from 490W to 1,590W: The default 1100W supply provides 490W of PoE, and a second 1100W supply takes it to 1,590W. A 1900W upgrade supply provides 1,290W on its own.
- Slot lineup for uplinks: The slot accepts C9300-NM-4G (4x 1G), C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-4M (4x Multigigabit), C9300-NM-2Q (2x 40G), or C9300-NM-8X (8x 10G/1G).
- Stack and pool power: Up to eight switches stack over 480 Gbps cables, with StackPower sharing supplies across up to four of them, or eight with an XPS-2200.
- Replaceable fans, spare supply bay: The three N+1 fans (FAN-T2) are field-replaceable, and a second power supply bay is available for redundancy.
Compare: Need a bigger PoE budget? The NEW C9300-48U-A provides 822W by default, on 1G ports. Want fixed 40G uplinks? The NEW C9300L-48UXG-2Q-A has two 40G QSFP+ uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 36x 2.5 Gigabit UPoE RJ45, 12x 10 Gigabit mGig UPoE RJ45 (100M, 1G, 2.5G, 5G, 10G)
- Management Ports : 1x Management Console RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x Cisco StackWise-480 connectors, 2x Cisco StackPower Connectors -Cables sold separately.
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Module Slot - None Included
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - sold separately.
- Switch Version : Network Advantage
- Fan Module Options : 3x Field Replaceable Fans
- Power Supplies Included : 1x PWR-C1-1100WAC, 1100W power. Dual Slots.
- Power Supply Options : 2x PWR-C1-1100WAC or 1x PWR-C1-1100WAC and 1x PWR-C1-715WAC
- PoE Budget : 490W
- Switching Capacity : 580 Gbps
- Forwarding Rate : 431.54 Mpps
- MAC Address Table Size : 32,000
- Model Number : C9300-48UXM-A
- Part Number : C9300-48UXM-A, C9300-48UXM-A=, C9300-48UXM-A-WS
- Condition : New
- One (1) NEW Cisco C9300-48UXM-A 36x 2.5GB 12x 10GB mGig UPoE RJ45 1x Module Slot Switch as described above
