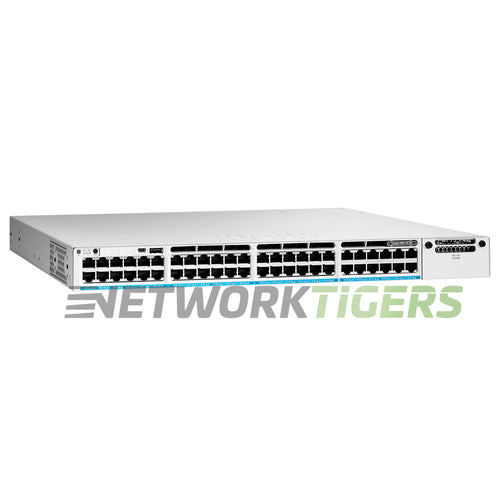

For access point closets that mix 2.5G and 10G devices, the seller refurbished Cisco Catalyst C9300-48UXM-E (Network Essentials version) offers 48 UPOE ports, a module slot for uplinks, and stacking for up to eight switches.
- Fast ports need fast uplinks: Choose C9300-NM-2Q (2x 40G), C9300-NM-2Y (2x 25G/10G/1G), or C9300-NM-8X (8x 10G/1G), or use C9300-NM-4M (4x Multigigabit) or C9300-NM-4G (4x 1G) for lower speeds.
- Cables and 9300X peers: Stack cables of 0.5m, 1m, and 3m link up to eight switches at 480 Gbps. Catalyst 9300X models can join, but higher-scale 9300 models cannot.
- Memory and SSD support: The switch has 8 GB of memory and 16 GB of flash, plus a USB 3.0 slot for an SSD of up to 240 GB.
- Budget with extra supplies: A 350W second supply lifts the 490W default PoE budget to 840W, and a 715W one lifts it to 1,205W.
Compare: Need all ports at 5G? The C9300-48UN-E has 48 UPOE ports at up to 5G. Want fixed 40G uplinks? The C9300L-48UXG-2Q-E has two 40G QSFP+ uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 36x 2.5 Gigabit UPoE RJ45, 12x 10 Gigabit mGig UPoE RJ45 (100M, 1G, 2.5G, 5G, 10G)
- Management Ports : 1x Management Console RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x Cisco StackWise-480 connectors, 2x Cisco StackPower Connectors - Cables sold separately.
- Modular Uplink Models (C9300 SKUs) : Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Module Slot - None Included
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - sold separately.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans
- Power Supplies Included : 1x PWR-C1-1100WAC, 1100W power. Dual Slots.
- Power Supply Options : 2x PWR-C1-1100WAC or 1x PWR-C1-1100WAC and 1x PWR-C1-715WAC
- PoE Budget : 490W
- Switching Capacity : 580 Gbps
- Forwarding Rate : 431.54 Mpps
- MAC Address Table Size : 32,000
- DRAM and Flash : DRAM = 8 GB, Flash = 16 GB
- Model Number : C9300-48UXM-E
- Part Number : C9300-48UXM-E, C9300-48UXM-E=, C9300-48UXM-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48UXM-E 36x 2.5GB 12x 10GB mGig UPoE RJ45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
