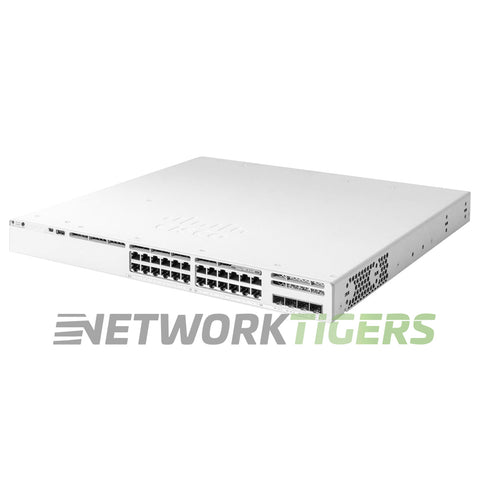

This NEW Cisco Catalyst C9300L-24P-4G-A (Network Advantage version) arrives in open box as a 24-port Gigabit PoE+ access switch with four fixed 1G uplinks, forwarding at wire speed for offices, schools, and small retail sites.
- Nonblocking at 56 Gbps: Switching capacity is 56 Gbps and forwarding is 41.66 Mpps, with a 16 MB packet buffer, 9198-byte jumbo frames, and a 32,000-entry MAC address table.
- PoE at 15.4W or 30W: The default 715W supply covers 24 ports at 15.4W (about 370W). Reaching 30W on every port needs 720W, from an 1100W supply or two 715W supplies.
- Fixed 1G uplinks, no module: The four uplinks are built in at 1G, so there is no module slot. The -4X version of this switch offers 10G/1G SFP+ uplinks instead.
- Stacking runs through a kit: Stacking uses the optional C9300L-STACK-KIT or C9300L-STACK-KIT2, and up to eight Catalyst 9300L switches share 320 Gbps.
Compare: Need a module slot? The NEW C9300-24P-A takes Catalyst 9300 network modules. Need more PoE per port? The NEW C9300L-24UXG-4X-A delivers Cisco UPOE at up to 60W per port.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45 - 802.3at (30W per port)
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P Included - 2nd Power Supply ordered separately.
- Power Supply Options : Not Included - Options are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
- PoE Budget : 505W (720W w/ 2nd PSU) - 2nd PSU allows PoE+ 802.3at (30W per port) for all 24 ports.
- Switching Capacity : 56 Gbps (Switching Capacity with Stacking - 376 Gbps)
- Forwarding Rate : 41.66 Mpps (Forwarding Rate with Stacking - 279.76 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24P-4G-A
- Part Number : C9300L-24P-4G-A, C9300L-24P-4G-A=, C9300L-24P-4G-A-WS
- Condition : New
- One (1) New Cisco C9300L-24P-4G-A 24x 1GB PoE+ RJ45 4x 1GB SFP Switch as described above
