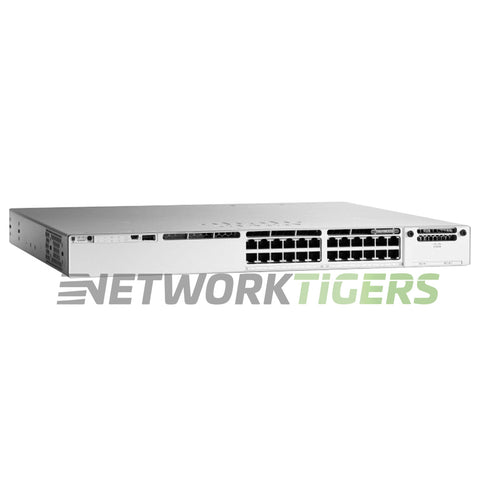

The NEW Cisco Catalyst C9300-24P-A (Network Advantage version) is a 24-port Gigabit PoE+ access switch, supplied in open box, whose modular uplink slot lets office, school, and retail networks move from 1G to 40G uplinks without changing the switch.
- Uplink headroom to spare: The 24 access ports total 24 Gbps, so a 10G, 25G, or 40G module leaves ample capacity. The C9300-NM-8X (8x 10G) and C9300-NM-2Q (2x 40G) each provide 80 Gbps of uplink bandwidth.
- A 1G-to-40G upgrade path: Start with a C9300-NM-4G (4x 1G) or C9300-NM-4M (4x Multigigabit) module, then swap to a C9300-NM-2Y (2x 25G/10G/1G) or C9300-NM-2Q module when the core moves.
- Powers any mix of endpoints: Each port supports PoE+ at up to 30W for access points and cameras. The default 715W supply provides 445W of PoE, and a second 715W supply or an 1100W supply provides the full 720W.
- Stacks with its own kind: Connect up to eight Catalyst 9300 switches over 480 Gbps stack cables and manage them as one.
Compare: For a closet with no powered devices, the NEW C9300-24T-A is the data-only version. Prefer fixed 10G uplinks to a module? The NEW C9300L-24P-4X-A comes with 4x 10G/1G SFP+ ports built in.
It ships as the switch itself. See all Cisco Catalyst 9300 switches and parts.
This Cisco C9300-24P-A switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Product Family : Catalyst 9300 Series
- Management Ports : 1x RJ45 Console, 1x USB Mini-B Console, 1x 10/100/1000 RJ45 Ethernet Management, 1x USB Type A (storage), 1x USB 3.0 SSD Slot
- Stacking Ports : 2x StackWise 480 Ports (480 Gbps Stacking Bandwidth), 2x StackPower Ports
- Stack Members : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M, CAB-SPWR-30CM, CAB-SPWR-150CM - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Modules are not included
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M, C9300-NM-2Y - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 (3 fan bays)
- Power Supplies Included : 1x PWR-C1-715WAC (2 power supply bays)
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC, PWR-C1-715WDC, PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- PoE Budget : 445W (720W with 2nd PSU)
- Switching Capacity : 208 Gbps (688 Gbps with Stacking)
- Forwarding Rate : 154.76 Mpps (511.90 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-24P-A
- Part Number : C9300-24P-A, C9300-24P-A=, C9300-24P-A-WS
- Condition : New
- One (1) NEW Cisco C9300-24P-A 24x 1GB PoE+ RJ45 1x Module Slot Switch as described above
