NEW Cisco C9300-24T-A Catalyst 9300 24x 1GB RJ45 1x Expansion Mod Slot Switch
New

NEW Cisco C9300-24T-A Catalyst 9300 24x 1GB RJ45 1x Expansion Mod Slot Switch

$ 3,735.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1723
UPC: 889728051675

Overview

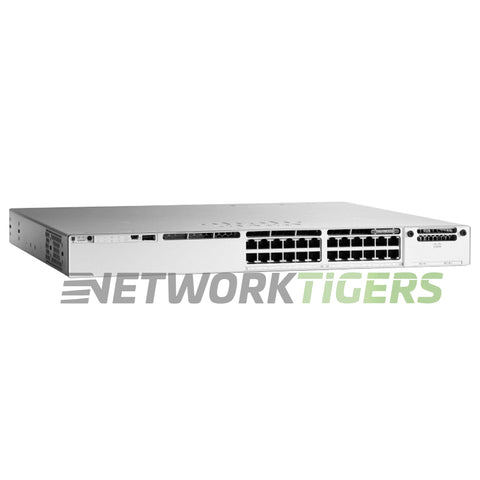

The Cisco C9300-24T-A Catalyst 9300 is a powerful and versatile switch that offers excellent performance for network connectivity. Its 24 Gigabit Ethernet ports provide fast and reliable connections for your devices.

One standout feature of the C9300-24T-A is its expansion module slot, which allows you to add additional functionality as needed. This flexibility ensures that your network can easily adapt to future demands.

This switch boasts an impressive 208 Gbps (688 Gbps with stacking), allowing for high-speed data transfer across your network. Its forwarding rate reaches 154.76 Mpps (511.90 Mpps with stacking), ensuring efficient traffic handling even during peak usage periods.

The C9300-24T-A has a generous MAC address table size of up to 32,000 entries. This means it can accommodate many connected devices without sacrificing performance or stability.

Cisco C9300-24T-A: Catalyst 9300 24x 1Gb RJ45 data only ports, Network Advantage.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet RJ-45
  • Management Ports : 1x RJ-45, 1x USB 2.0 (USB 2.0 slot to load system images and set configurations)
  • Stacking Ports : 2x StackWise 480 Ports (480 Gbps Stacking Bandwidth), 2x StackPower Ports - Cables sold separately - Cable Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M, CAB-SPWR-30CM, CAB-SPWR-150CM
  • Module Slots and Options : 1x Expansion Module Slot - Modules are not included
  • Expansion Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M, C9300-NM-2Y - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
  • Fan Modules AirFlow Direction : 3x FAN-T2 Field Replaceable Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-350WAC Power Supply included - 2x Slots - Options for 2nd PSU are - PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC
  • Switching Capacity : 208 Gbps (688 Gbps with Stacking)
  • Forwarding Rate : 154.76 Mpps (511.90 Mpps with Stacking)
  • MAC Address Table Size : 32000 entries
  • Rack Mounts : Included (1-RU)
  • Stack Members : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
  • Model Number : C9300-24T-A
  • Part Number : C9300-24T-A, C9300-24T-A=, C9300-24T-A-WS
  • Condition : New


Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's web site or on the web. Software or firmware updates may be available through the manufacturer's website
