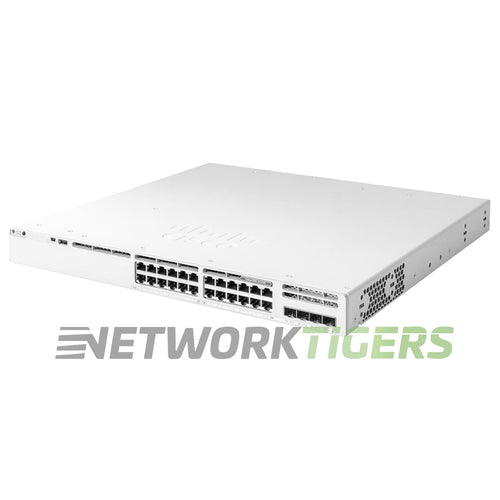

A NEW Cisco Catalyst C9300L-24P-4G-E (Network Essentials version), supplied in open box, gives wiring closets 24 Gigabit PoE+ ports with four fixed 1G uplinks, and it can stack with up to seven others using the optional kit.
- Uplink speed is set by the model: Uplinks are fixed, so the speed is chosen with the model: four 1G SFP here, four 10G/1G SFP+ on the -4X, or two 40G QSFP+ on the C9300L-24UXG-2Q.
- Cables for eight-switch stacks: The optional stack kit has two adapters and a 0.5m cable, with 1m and 3m cables also offered.
- Memory, flash, and USB: Each switch carries 8 GB of memory and 16 GB of flash, plus a USB 3.0 slot that takes an SSD of up to 240 GB.
- Idle and full-load draw: With no link, Cisco's published measurements show 61.92W at 115V, rising to 77.70W at full-port traffic with no PoE load.
Compare: Need more ports and PoE? The NEW C9300L-48PF-4G-E has 48 PoE+ ports and 890W by default. Need swappable uplink modules? The NEW C9300-24P-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45 - 802.3at (30W per port)
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P Included - 2nd Power Supply ordered separately
- Power Supply Options : Not Included - Options are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
- PoE Budget : 505W (720W w/ 2nd PSU) - 2nd PSU allows PoE+ 802.3at (30W per port) for all 24 ports.
- Switching Capacity : 56 Gbps (Switching Capacity with Stacking - 376 Gbps)
- Forwarding Rate : 41.66 Mpps (Forwarding Rate with Stacking - 279.76 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24P-4G-E
- Part Number : C9300L-24P-4G-E, C9300L-24P-4G-E=, C9300L-24P-4G-E-WS
- Condition : New
- One (1) NEW Cisco C9300L-24P-4G-E 24x 1GB PoE+ RJ45 4x 1GB SFP Switch as described above
