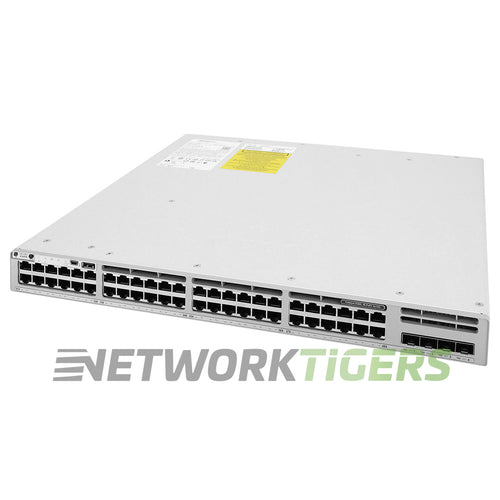

Delivering up to 890W of PoE from its default 1100W supply, the seller refurbished Cisco Catalyst C9300L-48PF-4G-E (Network Essentials version) powers 48 Gigabit PoE+ ports and adds four fixed 1G uplinks and optional stacking for up to eight switches.
- Budget from 890W to 1,440W: A 350W second supply lifts the 890W default PoE budget to 1,240W, and a 715W one reaches 1,440W.
- Four SFP uplinks, no modules: The uplinks are 1G SFP ports that plug in directly, with no network module involved.
- Only 9300L peers join: Up to eight switches stack at 320 Gbps, but only with other Catalyst 9300L and 9300LM switches. Modular Catalyst 9300 and Catalyst 3850/3650 switches cannot join.
- Fan swaps, spare supply bay: The three N+1 fans (FAN-T2) can be replaced in the field, and an open second bay takes a redundant supply.
Compare: Need fewer ports? The C9300L-24P-4G-E has 24 PoE+ ports. Need a module slot? The C9300-48P-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x 1 Gigabit Ethernet Full PoE+ RJ45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2x Slots - 2nd Power Supply ordered separately.
- PoE Budget : 890W
- Switching Capacity : 104 Gbps (Switching Capacity with Stacking - 424 Gbps)
- Forwarding Rate : 77.38 Mpps (Forwarding Rate with Stacking - 315.48 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48PF-4G-E
- Part Number : C9300L-48PF-4G-E, C9300L-48PF-4G-E=, C9300L-48PF-4G-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48PF-4G-E 48x 1GB Full PoE+ RJ45 4x 1GB SFP Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
