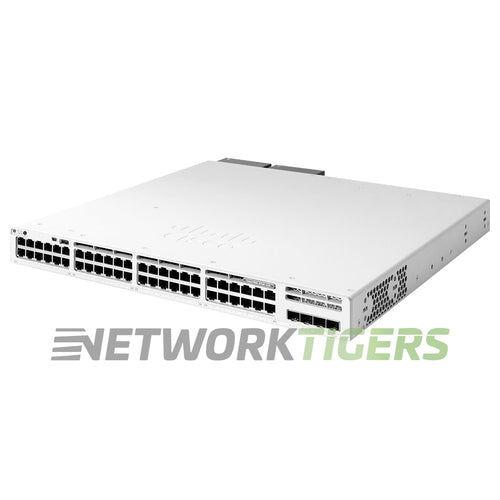

With 176 Gbps of switching capacity and four fixed 10G/1G uplinks, the seller refurbished Cisco Catalyst C9300L-48PF-4X-A (Network Advantage version) is a 48-port Gigabit PoE+ access switch with an 1100W default supply for offices, schools, and retail sites.
- 176 Gbps with fast uplinks: Forwarding is 130.95 Mpps on 176 Gbps of switching capacity, with a 16 MB packet buffer, 9198-byte jumbo frames, and a 32,000-entry MAC address table.
- 890W of PoE by default: The default 1100W supply provides 890W of PoE, and a 350W second supply takes it to 1,240W.
- Four SFP+ uplinks at 10G: The built-in uplinks run at 10G/1G and take LC fiber transceivers, with no module slot to fill.
- Stacking needs a kit: Stacking uses the optional C9300L-STACK-KIT or C9300L-STACK-KIT2, and up to eight Catalyst 9300L switches share 320 Gbps.
Compare: Want slower built-in uplinks? The C9300L-48PF-4G-A has four 1G SFP uplinks. Need UPOE at 60W per port? The C9300L-48UXG-4X-A delivers it on 48 ports.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x Gigabit Ethernet Full PoE+ RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stack Technology : StackWise-320
- Stacking Options : C9300L-STACK-KIT - Ordered Separately
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2x Slots - 2nd Power Supply ordered separately.
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P - Not Included
- PoE Budget : 890W (w/ Primary PSU), 1440W (w/ Secondary PSU)
- Switching Capacity : 176 Gbps (Switching Capacity with Stacking - 496 Gbps)
- Forwarding Rate : 130.95 Mpps (Forwarding Rate with Stacking - 369.05 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48PF-4X-A
- Part Number : C9300L-48PF-4X-A, C9300L-48PF-4X-A=, C9300L-48PF-4X-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48PF-4X-A 48x 1GB Full PoE+ RJ45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
