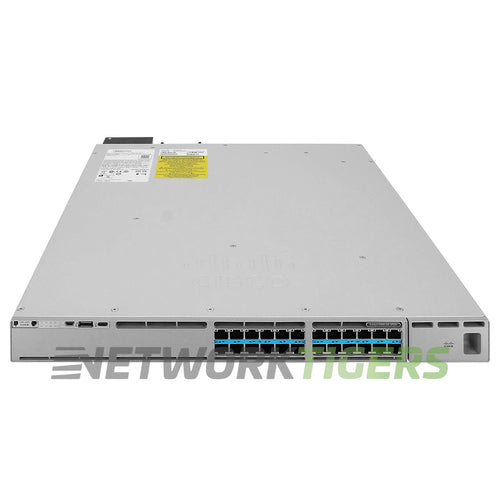

Delivering Cisco UPOE+ at up to 90W per port, the seller refurbished Cisco Catalyst C9300X-24HX-A (Network Advantage version) is a 24-port 10G Multigigabit access switch with a modular uplink slot for high-power PoE devices in camera and access point closets.
- 735W up to 2,160W of PoE: The default 1100W supply provides 735W of PoE. A second 1100W supply takes it to 1,835W, and 2,160W is 90W on all 24 ports.
- Uplink slot lineup: The slot takes C9300X-NM-8M (8x 10G/1G Multigigabit), C9300X-NM-8Y (8x 25G/10G/1G), or C9300X-NM-2C (2x 100G/40G) modules.
- StackPower+ in a stack: Up to eight switches stack at 1 Tbps, and StackPower+ pools supplies across up to four of them, or eight with an XPS-2200.
- Spare bay and fans: A second power supply can go in the open bay, and the three fans (FAN-T2, N+1) are field-replaceable.
Compare: Need more ports? The C9300X-48HX-A has 48 Multigigabit UPOE+ ports. Don't need 90W per port? The C9300-24UX-A delivers Cisco UPOE at up to 60W per port.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 10 Gigabit Ethernet UPoE+ RJ45 (UPOE+ - 802.3bt 90W)
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
- PoE Budget : 735W (w/ Default 1100W AC PSU) - Higher PoE Budget with secondary PSU - 1085W (w/ 350W 2nd PSU), 1450W (w/ 715W 2nd PSU), 1835W (w/ 1100W 2nd PSU)
- Switching Capacity : 800 Gbps (1,880 Gbps w/ Stacking)
- Forwarding Rate : 654.72 Mpps (1398.72 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-24HX-A
- Part Number : C9300X-24HX-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-24HX-A Catalyst 9300X 24x 10GB UPoE+ RJ45 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
