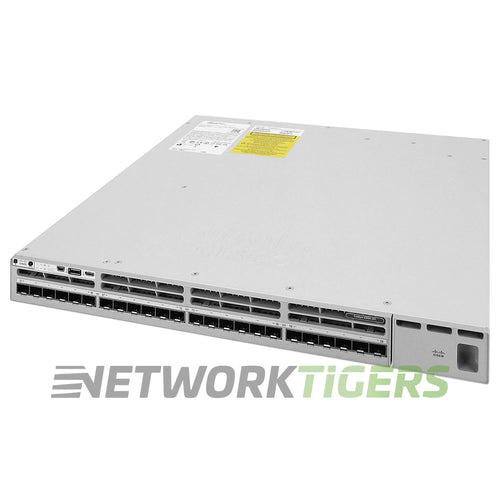

With 24 SFP28 ports that run at 25G, 10G, or 1G, the seller refurbished Cisco Catalyst C9300X-24Y-A (Network Advantage version) is a fiber access and aggregation switch with a modular uplink slot and eight-unit stacking.
- 192 SFP28 ports, 3 Tbps stacked: Eight switches over StackWise-1T cables give 192 SFP28 ports. Stacked switching capacity reaches 3,000 Gbps, with 2,232 Mpps of forwarding.
- Tag, weight, and MTBF: An embedded RFID tag and a blue beacon LED help with inventory. The chassis weighs 16.2 lb (7.35 kg), and its MTBF is 249,350 hours.
- No PoE, 715W supply: The default PWR-C1-715WAC-P is rated 715W, and the chassis is 19.2 in deep with it fitted.
- Modules for 100G links: Choose from C9300X-NM-4C (4x 100G/40G), C9300X-NM-2C (2x 100G/40G), C9300X-NM-8Y (8x 25G/10G/1G), or C9300X-NM-8M (8x 10G/1G Multigigabit).
It ships with one AC power supply, three fan modules, a power cord and a set of rack mount brackets.
Compare: Want fewer ports? The C9300X-12Y-E, the Network Essentials version, has 12 SFP28 ports. Need copper ports with PoE? The C9300X-48HX-A has 48 Multigigabit UPOE+ ports. See all Cisco Catalyst 9300 switches and parts.
This seller refurbished Cisco C9300X-24Y-A switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 25GB SFP28
- Management Ports : 1x USB 2.0,1x USB 3.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 3x FAN-T2 (3 fan bays)
- Power Supplies Included : 1x PWR-C1-715WAC-P (2 power supply bays)
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-715WDC, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-1900WHV-T
- PoE Budget : No PoE
- Switching Capacity : 2,000 Gbps (3,000 Gbps w/ stacking)
- Forwarding Rate : 1488 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- DRAM and Flash : 16GB DRAM, 16GB Flash
- Model Number : C9300X-24Y-A
- Part Number : C9300X-24Y-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-24Y-A Catalyst 9300X Series 24x 25GB SFP28 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
