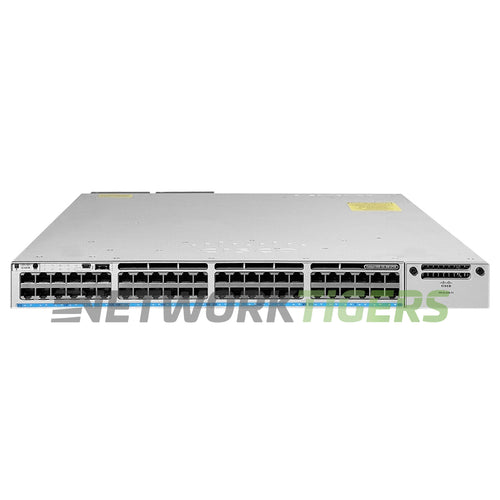

Pairing 8 ports at 10G with 40 ports at 5G, all with Cisco UPOE+ power, the seller refurbished Cisco Catalyst C9300X-48HXN-A (Network Advantage version) is an access switch with a modular uplink slot for Wi-Fi 6 closets.
- Modules with fewer ports: C9300X-NM-8M, C9300X-NM-8Y, and C9300X-NM-2C fit the slot, but Cisco notes that the number of usable module ports is limited on the 48HXN.
- Stack cables and 9300 peers: StackWise cables come in 0.5m, 1m, and 3m lengths. Up to eight switches stack at 1 Tbps, or 480 Gbps when Catalyst 9300 models are mixed in.
- Memory and storage: The switch has 16 GB of memory and 16 GB of flash, plus a USB 3.0 slot for an SSD of up to 240 GB.
- Budget with a second supply: The default 1100W supply provides 690W of PoE. A 350W second supply raises that to 1,040W, and a 715W one to 1,405W.
Compare: Want all 48 ports at 10G? The C9300X-48HX-A has 48 Multigigabit UPOE+ ports. Want fewer ports? The C9300X-24HX-A has 24 UPOE+ ports.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 40x 5GB MultiGigabit (5GB/2.5GB/1GB/100M), 8x 10GB MultiGigabit (10GB/5GB/2.5GB/1GB/100M)
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x Stackwise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports
- StackPower : Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM - Not Included
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y - Not Included
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
- PoE Budget : 690W (1040W w/ 350W Secondary PS, 1405W w/ 715W Secondary PSU, 1790W w/ 1790W Secondary PSU, 2590W w/ 1900W Secondary PSU)
- Switching Capacity : 960 Gbps (1960 Gbps w/ Stacking)
- Forwarding Rate : 714.24 Mpps (1458.24 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-48HXN-A
- Part Number : C9300X-48HXN-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-48HXN-A 48x (8x 10GB 40x 5GB UPoE+) RJ45 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
