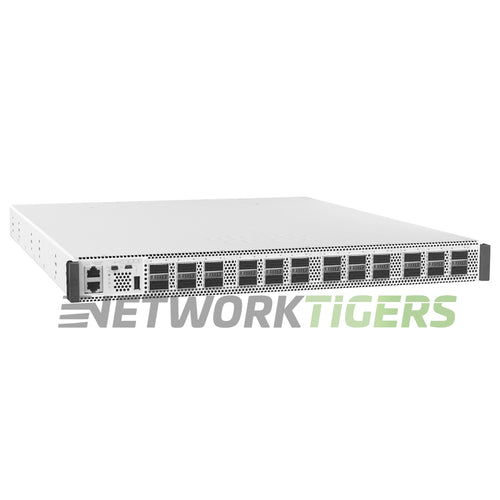

The Cisco C9500-24Q-A is a 1RU Catalyst 9500 switch with twenty-four 40 Gigabit Ethernet QSFP+ ports.
Cisco rates it at up to 1.92 Tbps of switching capacity and a forwarding rate of up to 1,440 Mpps. Two power supply bays take the PWR-C4-950WAC-R (950W AC) or PWR-C4-950WDC-R (950W DC) supplies for 1+1 redundancy, and five FAN-T4-R fan modules handle front-to-back cooling. This is the Network Advantage version.
It ships with one power cord, one AC power supply, five fan modules, and one set of rack-mount brackets.
For the Network Essentials version, see the Cisco C9500-24Q-E switch.
This seller refurbished Cisco C9500-24Q-A switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 40GB QSFP+
- Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
- Stacking Options : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
- Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 5x FAN-T4-R (5 fan bays)
- Power Supplies Included : 1x PWR-C4-950WAC-R (2 power supply bays)
- Power Supply Options : PWR-C4-950WAC-R, PWR-C4-950WDC-R
- Switching Capacity : Up to 1920 Gbps
- Forwarding Rate : Up to 1440 Mpps
- MAC Address Table Size : 64,000
- DRAM and Flash : 16GB DRAM, 16GB Flash
- Model Number : C9500-24Q-A
- Part Number : C9500-24Q-A, C9500-24Q-A=, C9500-24Q-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9500-24Q-A Catalyst 9500 24x 40GB QSFP+ Front-to-Back Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
