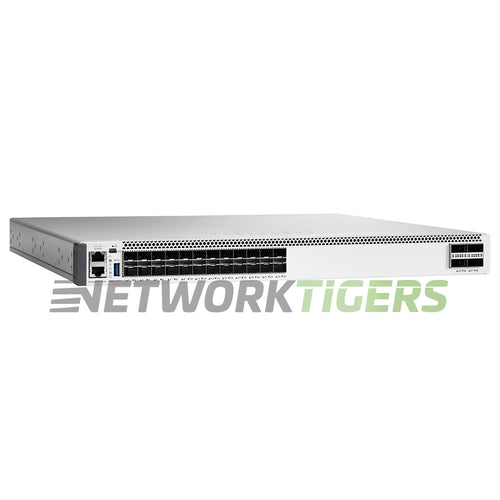

The Cisco C9500-24Y4C-E is a 1RU Catalyst 9500 switch with twenty-four 1/10/25 Gigabit Ethernet SFP28 ports and four 40/100 Gigabit Ethernet QSFP28 uplink ports. It is one of the high-performance Catalyst 9500 models, built on the UADP 3.0 ASIC.
Cisco rates it at up to 2.0 Tbps of switching capacity and a forwarding rate of up to 1 Bpps. Two power supply bays take the C9K-PWR-650WAC-R (650W AC) or C9K-PWR-930WDC-R (930W DC) supplies for 1+1 redundancy, and C9K-T1-FANTRAY fan trays handle front-to-back cooling. This is the Network Essentials version.
It ships with one power cord, one AC power supply, four fan modules, and one set of rack-mount brackets.
For the Network Advantage version, see the Cisco C9500-24Y4C-A switch.
This seller refurbished Cisco C9500-24Y4C-E switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 25GB SFP28
- Product Family : Catalyst 9500 Series
- Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
- Switch Version : Network Essentials
- Fan Module Options : 4x C9K-T1-FANTRAY Fans Modules
- Power Supplies Included : 1x C9K-PWR-650WAC-R (2 power supply bays)
- Power Supply Options : C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R
- Switching Capacity : Up to 2.0 Tbps
- Forwarding Rate : Up to 1 Bpps
- MAC Address Table Size : 82,000
- Jumbo Frame Support : 9198 bytes
- Model Number : C9500-24Y4C-E
- Part Number : C9500-24Y4C-E, C9500-24Y4C-E=, C9500-24Y4C-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9500-24Y4C-E Catalyst 9500 24x 25GB SFP28 Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
