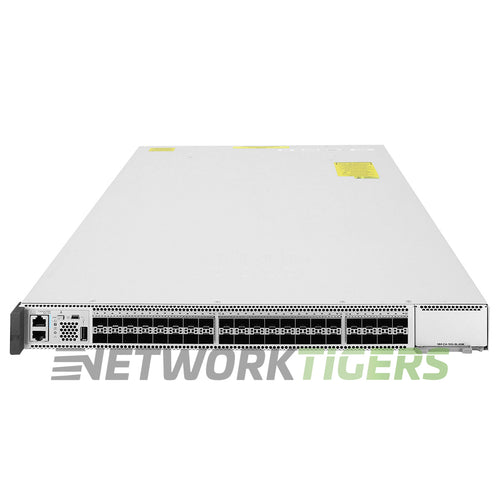

Cisco C9500-40X-2Q-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-2Q Module

Cisco C9500-40X-2Q-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-2Q Module

$ 7,582.99
$ 3,162.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9008
UPC: 889728086776

Overview

The Cisco C9500-40X-2Q-A is a high-performance switch designed for enterprise networks. It features 40 ports of 10GB SFP+ connectivity and comes with one C9500-NM-2Q module. With a switching capacity of 960-Gbps, this switch can handle heavy network traffic efficiently.

One standout feature of the Cisco C9500-40X-2QA is its forwarding rate of up to 1440 Mpps (million packets per second), ensuring quick data transmission in demanding environments. This makes it ideal for businesses that require fast and reliable networking solutions.

The inclusion of the C9500-NM-2Q module adds extra flexibility by providing two additional QSFP/SFP28 slots for higher port density or multi-gigabit connections.

Cisco C9500-40X-2Q-A: Cisco Catalyst 9500 40-port 1/10G switch, 2 x 40GE Network Module.


Specifications

  • Network Ports : 40x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ45 Console, 1x Out of Band Management, 1x USB, 1x Mini USB
  • Stacking Options : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
  • Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
  • Module Slots : 1x Module Slot - 1x C9500-NM-2Q Module Included (2x 40G QSFP+)
  • Module Options : C9500-NM-8X (Not Included)
  • Switch Version : Network Advantage Version
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 5x FAN-T4-R Fans Modules - Front-to-Back Airflow
  • Power Supplies Included : 2x PSU Slots - 1x PWR-C4-950WAC-R 950W AC Power Supply included - 2nd Power Supply ordered separately
  • Power Supply Options : PWR-C4-950WAC-R is the only PSU option for this switch.
  • Switching Capacity : 960 Gbps
  • Forwarding Rate : 1440 Mpps
  • MAC Address Table Size : 64,000
  • DRAM and Flash : 4GB DDR2 SDRAM, 16GB Flash
  • Model Number : C9500-40X-2Q-A
  • Part Number : C9500-40X-2Q-A, C9500-40X-2Q-A=, C9500-40X-2Q-A-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco C9500-40X-2Q-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-2Q Module as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
