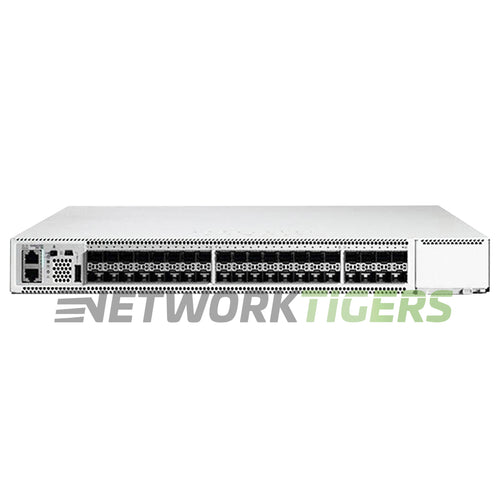

Cisco C9500-40X-A Catalyst 9500 40x 10GB SFP+ Front-to-Back Airflow Switch

Cisco C9500-40X-A Catalyst 9500 40x 10GB SFP+ Front-to-Back Airflow Switch

$ 3,162.99
$ 2,197.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8343
UPC: 889728051552

Overview

The Cisco C9500-40X-A Catalyst 9500 switch is designed for high-performance networking. With a switching capacity of up to 960 Gbps and a forwarding rate of up to 720 Mpps, this switch ensures reliable and fast data transmission.

With its front-to-back airflow design, the C9500-40X-A allows efficient cooling in network racks. It features forty ports that support 10GB SFP+ interfaces for seamless connectivity options.

This switch's MAC address table size is impressive at 64,000 entries, allowing easy management of connected devices on your network. This makes it suitable for large-scale deployments where numerous devices must be addressed.

Cisco Catalyst C9500-40X-A: Cisco Catalyst 9500 40-port 10G switch. Front-to-Back Airflow.


Specifications

  • Network Ports : 40x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
  • Stacking Options : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
  • Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
  • Module Slots : 1x Module Slot - Ordered Separately
  • Module Options : C9500-NM-8X (8-port 1/10 Gigabit Ethernet with SFP/SFP+), C9500-NM-2Q (2-port 40 Gigabit Ethernet with QSFP+)
  • Switch Version : Network Advantage Version
  • Fan Module Options : 5x FAN-T4-R Fans Modules - Front-to-Back Airflow
  • Power Supplies Included : 1x PWR-C4-950WAC-R Power Supply included (Front-to-Back Airflow) - 2x Slot - 2nd Power Supply ordered separately
  • Power Supply Options : PWR-C4-950WAC-R, PWR-C4-950WDC-R
  • Switching Capacity : Up to 960 Gbps
  • Forwarding Rate : Up to 720 Mpps
  • MAC Address Table Size : 64,000
  • DRAM and Flash : 4GB DDR2 SDRAM, 16GB Flash
  • Model Number : C9500-40X-A
  • Part Number : C9500-40X-A, C9500-40X-A=, C9500-40X-A-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco C9500-40X-A Catalyst 9500 40x 10GB SFP+ Front-to-Back Airflow Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
