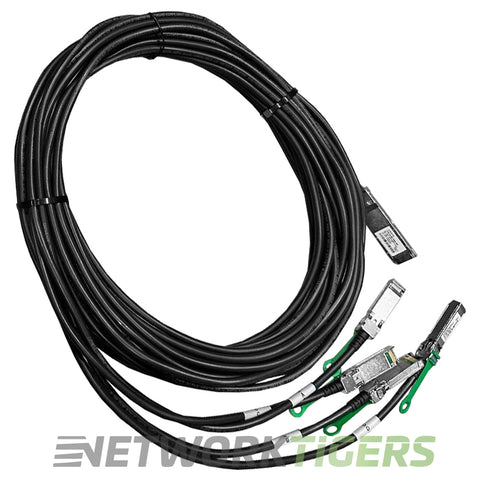

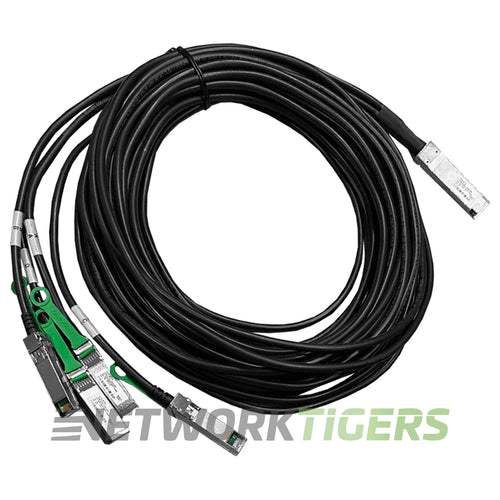

The Arista CAB-Q-4S-100G-5M is a 5-meter 100 Gigabit QSFP28 to 4x SFP28 breakout cable. Arista's catalog describes it as a "100GBASE-CR4 QSFP to 4 x 25GBASE-CR SFP Twinax Copper Cable". It is a passive twinax breakout cable that splits one 100G QSFP28 port into four 25G SFP28 connections. Arista notes that all four lanes of one 100G port run at the same speed, so you cannot mix 10G and 25G on one port, and both ends should use the same FEC mode.
Use it to connect a 100G switch port to four 25G servers or switches. Arista classes the 5-meter length as a CA-L cable, which needs RS-FEC. Arista lists EOS 4.18.0 as the minimum software release.
If you need a different length, the shorter CAB-Q-4S-100G-3M 3m 100G QSFP28 to 4x SFP28 direct attach breakout cable is also available. For a straight 100G link between two switch ports, see the CAB-Q-Q-100G-5M 5m 100G QSFP28 direct attach copper cable. A new CAB-Q-4S-100G-5M 5m 100G QSFP28 to 4x SFP28 direct attach breakout cable is also available.
This seller refurbished CAB-Q-4S-100G-5M cable is covered by the NetworkTigers one-year warranty.
- Cable Type : Twinax Copper Cable (Breakout Cable)
- Product Description : 100GBASE-CR4 QSFP to 4 x 25GBASE-CR SFP Twinax Copper Cable, 5 meters
- Cable Length : 5 meters
- Connector 1 : QSFP28
- Connector 2 : 4x SFP28
- Speed : 100 Gbps to 4x 25 Gbps
- Model Number : CAB-Q-4S-100G-5M
- Part Number : CAB-Q-4S-100G-5M
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista CAB-Q-4S-100G-5M 5m 100GB QSFP28 to 4x 25GB SFP+ Breakout Cable as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
