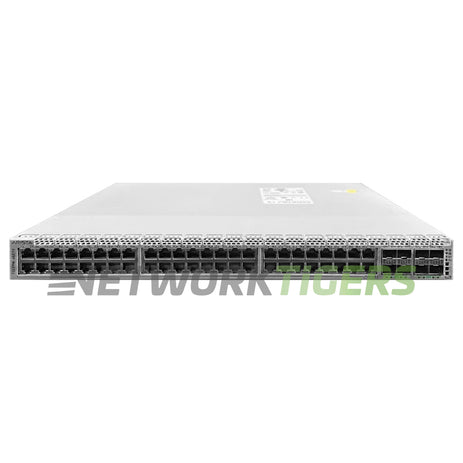

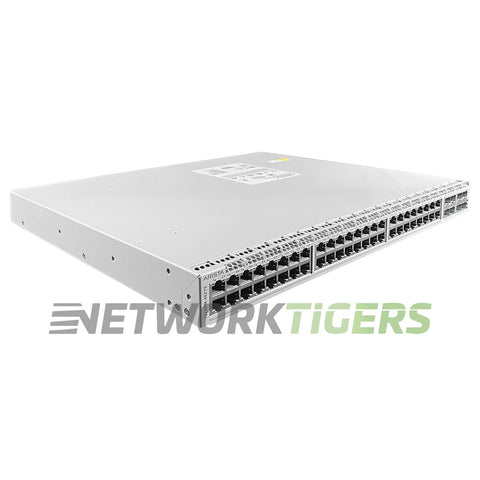

The Arista CCS-722XPM-48ZY8-F is a fixed-form-factor switch from Arista featuring 640 Gbps switching capacity with MACsec at 100 Gbps downlink and uplink. It supports up to 952 Mpps forwarding rate, includes an 8 MB packet buffer, and uses high-speed Ethernet interfaces.
This model offers system memory of 4 GB and maintains latency at approximately 1.2 microseconds. The device accommodates up to 64,000 MAC addresses in its table. It supports front-to-rear airflow (F suffix) for consistent thermal performance and provides modular slot configurations suited for data center or service provider deployments requiring medium port density variants compatible with standard rack mounting systems.
Arista CCS-722XPM-48ZY8-F: Arista 722XPM, 48x2.5G 60W POE, 8x25G SFP28 switch, front to rear air, MACsec, AC.
- Network Ports : 48x 2.5 Gigabit Ethernet PoE++ RJ45
- Uplink Ports : 8x 25 Gigabit Ethernet SFP28
- Management Ports : 1x UBS, 1x Console, 1x Management RJ45
- CPU : Dual Core-x86
- Packet Buffer : 8MB
- System Memory : 4GB
- System Flash : 16GB
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-7000-F Fans Included (N+1 redundant)
- Power Supplies Included : 1x PWR-1021-AC-RED 1050W AC PSU's Included - 2x PSU Slots
- Power Supply Options : 650W, 1050W, 2000W, 500W (DC)
- PoE Budget : 916W
- 640Gbps (MACsec : 100Gbps down and 100Gbps up)
- Forwarding Rate : 952 Mpps
- MAC Address Table Size : 64,000
- Latency : 1.2 microseconds
- PoE Budget Dual PWR : 1x 650W AC PS1 516W/490W, 1x 1050W AC PS1 916W/890W, 1x 2000W AC PS1 1866W/1840W, 1x 500W DC PS1 366W/340W, 2x 650W AC PS1 1069W/1043W, 2x 1050W AC PS1 1809W/1783W, 2x 2000W AC PS1 3666W/3640W, 2x 500W DC PS1 816W/790W
- Model Number : CCS-722XPM-48ZY8-F
- Part Number : CCS-722XPM-48ZY8-F
- Condition : Seller refurbished
- One (1) Seller refurbished Arista CCS-722XPM-48ZY8-F 48x 2.5GB PoE++ RJ45 8x 25GB SFP28 F-B MACsec Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
