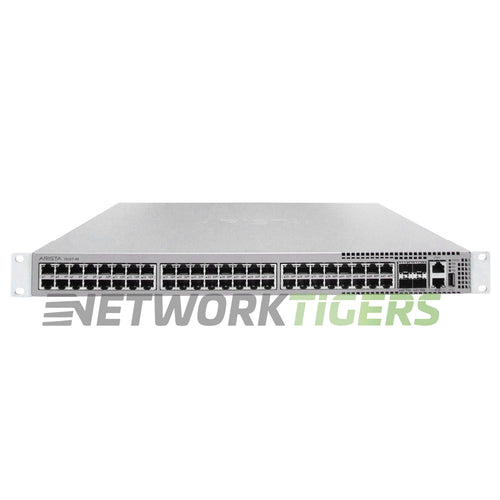

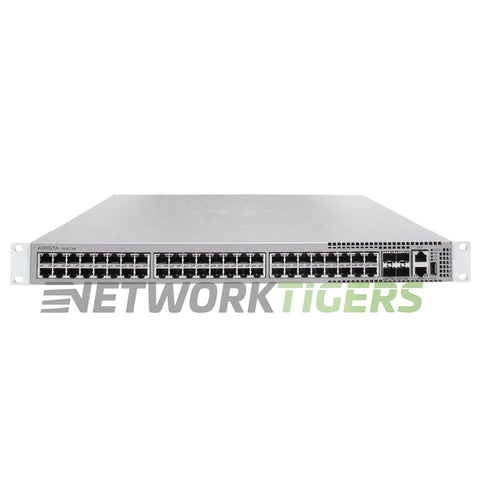

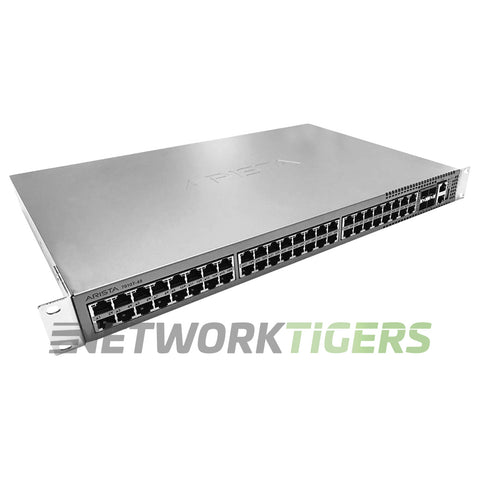

The Arista DCS-7010T-48-R is a 1RU switch with 48 RJ45 ports at 10/100/1000 Mb/s and four SFP+ uplinks that run at 1GbE or 10GbE. It suits out-of-band management networks and gigabit leaf roles, with typical power draw of 52W.
Arista rates it at 176 Gbps and 132 Mpps with 3 microseconds of latency, and a 4 MB packet buffer is allocated dynamically to congested ports. The control plane runs on a multi-core x86 CPU with 4 GB DRAM and 4 GB flash. Management connections are a 10/100/1000 port, an RJ45 serial console and a USB port.

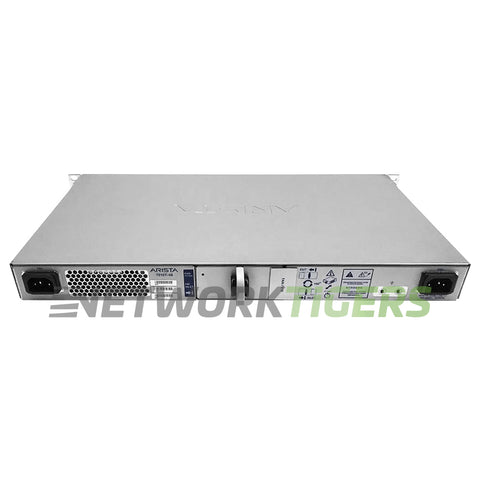

Two internal 65W AC power supplies run 1+1 redundant and are built in, not field replaceable. Cooling comes from a single FAN-7010 module with two fans in a 1+1 arrangement. This unit moves air back-to-front (port-side exhaust), so mount it with the port side facing the hot aisle. Rotating the fan module 180 degrees reverses the airflow.
This listing ships with the switch, two power cords, the installed fan module and one set of rack mount brackets. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately. Transceivers are not included.
If your rack needs front-to-back airflow out of the box, see the DCS-7010T-48-F switch. A new open box DCS-7010T-48-R is also listed, and the FAN-7010 fan module is available as a spare.
This seller refurbished Arista DCS-7010T-48-R switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet RJ45 (10/100/1000)
- Uplink Ports : 4x 1/10GB SFP+
- Management Ports : 1x 10/100/1000 mgmt, 1x RS-232 console (RJ45), 1x USB
- CPU : Multi-core x86 CPU
- VLAN ID's : 4096
- Packet Buffer : 4MB
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Module Options : FAN-7010
- Power Supplies Included : 2x 65W AC built in (1+1 redundant, not field replaceable)
- PoE Budget : None
- Switching Capacity : 176 Gbps
- Forwarding Rate : 132 Mpps
- MAC Address Table Size : 84,000
- Latency : 3 microseconds
- DRAM and Flash : 4 GB DRAM, 4 GB flash
- Model Number : DCS-7010T-48-R
- Part Number : DCS-7010T-48-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7010T-48-R 48x 1GB RJ45 4x 10GB SFP+ Back-to-Front Airflow Switch as described above
- Two (2) Power Cords Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
