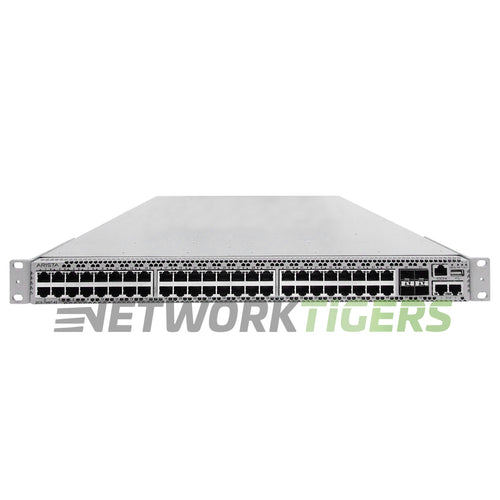

The 7048T is a 1RU top-of-rack switch with 48 100/1000BASE-T ports and four 1/10G SFP+ uplinks. Its 768 MB packet buffer is far deeper than typical gigabit switches carry, which helps with storage and backup traffic that arrives in bursts.
Arista rates it at 176 Gbps and 132 Mpps, with 3 microseconds of latency. The control plane has 2 GB DRAM and 2 GB flash, with two 10/100/1000 management ports, an RS-232 console and USB. Power draw is 235W typical and 325W maximum.
Two 760W AC power supplies (PWR-760AC) are installed in a 1+1 redundant pair. Five hot-swap FAN-7100-R fans in N+1 move air back-to-front (port-side exhaust). Arista also built the front-to-back version, so match the airflow to your hot and cold aisles.
The chassis is 17.4 x 20.25 x 1.74 in and weighs 22 lb, so check rack depth before installing. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7048T-4S-F with the opposite airflow. Matching spares include the PWR-760AC power supply and the FAN-7100-R fan module.
This seller refurbished DCS-7048T-4S-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 100/1000BASE-T
- Uplink Ports : 4x 1/10G SFP+
- Management Ports : 2x 10/100/1000 mgmt, 1x RS-232 console, 1x USB
- IPv4 Routes : 14K
- IPv6 Routes : 4K
- CPU : Dual-core x86
- VLAN ID's : 4094
- Packet Buffer : 768MB
- Switch Version : Arista EOS
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Module Options : FAN-7100-R
- Power Supplies Included : 2x 760W AC (1+1)
- Power Supply Options : PWR-760AC (760W AC)
- PoE Budget : None
- Switching Capacity : 176 Gbps
- Forwarding Rate : 132 Mpps
- Latency : 3 microseconds
- DRAM and Flash : 2 GB DRAM, 2 GB flash
- Model Number : DCS-7048T-4S-R
- Part Number : DCS-7048T-4S-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7048T-4S-R 48x 1GB RJ45 4x 10GB SFP+ Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- Two (2) AC Power Supplies Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
