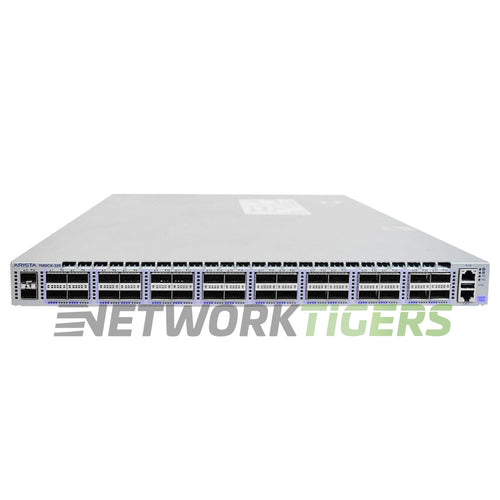

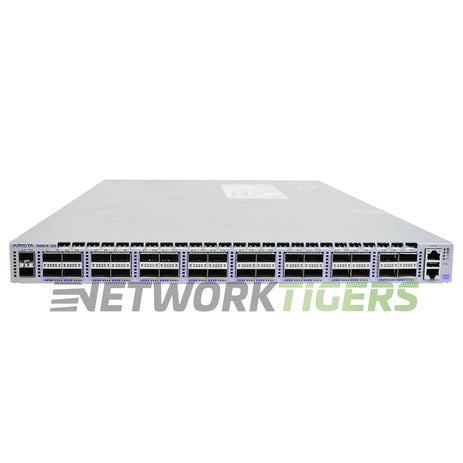

Arista DCS-7060CX-32S-F HPE JH576A 32x 100GB QSFP28 2x 10GB SFP+ F-B Air Switch

Ask for quote

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSH-7470

The 7060CX-32S is a 1RU 100G switch with 32 QSFP100 ports that run at 40G or 100G, plus two 10G SFP+ ports, for leaf and spine roles.

With breakout cables the QSFP100 ports can provide up to 128 25G or 128 10G interfaces. Arista rates the switch at 6.4 Tbps and 3.3 Bpps, with 450 nanoseconds of latency and a 16 MB shared buffer that uses Dynamic Buffer Allocation.

Two 500W AC power supplies are installed in a 1+1 redundant, hot-swap pair, using C13-C14 cords. Spares are PWR-500AC-F and PWR-500-DC-F for DC. Four hot-swap FAN-7000-F fans in N+1 move air front-to-back (port-side intake). Arista also sells the back-to-front version, so match all fans and supplies to your rack.

Power draw is 187W typical and 333W maximum. The control plane runs a multi-core x86 CPU with 4 GB RAM and 4 GB flash, managed through a 100/1000 RJ-45 port, an RJ-45 RS-232 console and USB. The switch weighs 21 lb. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7060CX-32S-R with the opposite airflow. A new DCS-7060CX-32S-F is also available. Matching spares include the PWR-500AC-F power supply and the FAN-7000-F fan module.

This seller refurbished DCS-7060CX-32S-F is tested, working, and covered by the NetworkTigers one-year warranty.

Network Ports : 32x QSFP100 (40/100G, max 128x 25G or 128x 10G via breakout)
Uplink Ports : 2x SFP+ (10G)
Management Ports : 1x 100/1000 RJ-45 mgmt, 1x RS-232 RJ-45 console, 1x USB
Switch Version : Arista EOS - Group 2
System Memory : 4 GB RAM, 4 GB flash, Multi-Core x86 CPU
AirFlow Direction : front-to-back (port-side intake)
Fan Modules : 4 hot-swap (N+1)
Power Supplies : 2x 500W AC (1+1 redundant, hot-swap)
Switching Capacity : 6.4 Tbps
Forwarding Rate : 3.3 Bpps
MAC Address Table Size : 136,000
Max IPv4 LPM Routes : 128,000
Max IPv6 LPM Routes : 84,000
Max IPv4 Host Routes : 104,000
Multicast Routes : 4,000
VLANs Supported : 4096
Packet Buffer : 64MB
Latency : 450 ns
CPU : High Performance x86 CPU
Model Number : DCS-7060CX-32S-F
Part Number : DCS-7060CX-32S-F, JH576A
Condition : Seller refurbished

More information on this Arista DCS-7060CX-32S-F.

One (1) Seller Refurbished Arista DCS-7060CX-32S-F HPE JH576A 32x 100GB QSFP 2x 10GB SFP+ F-B Air Switch as described above
One (1) Power Cord Included
Two (2) AC Power Supplies Included
Four (4) Fan Modules Included
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
Transceiver Modules Not Included
