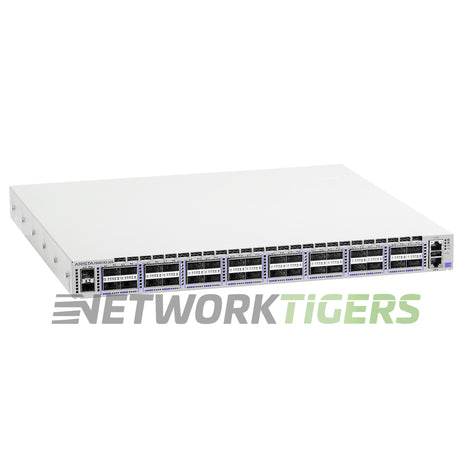

The 7060CX2-32S is a 1RU 100G leaf and spine switch with 32 QSFP100 ports that run at 40G or 100G, plus two 10G SFP+ ports.
With breakout cables the QSFP100 ports can provide up to 128 25G or 128 10G interfaces. Arista rates the switch at 6.4 Tbps and 3.3 Bpps, with 450 nanoseconds of latency and a 22 MB shared buffer (up from 16 MB on the original 7060CX-32S) that uses Dynamic Buffer Allocation.
Two 500W AC power supplies are installed in a 1+1 redundant, hot-swap pair, using C13-C14 cords. Spares are PWR-500AC-R and PWR-500-DC-R for DC. Four hot-swap FAN-7000-R fans in N+1 move air back-to-front (port-side exhaust). Arista also sells the front-to-back version, so match all fans and supplies to your rack.
Power draw is 187W typical and 333W maximum. The control plane runs a multi-core x86 CPU with 8 GB RAM and 4 GB flash, managed through a 100/1000 RJ-45 port, an RJ-45 RS-232 console and USB. The switch weighs 21 lb. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7060CX2-32S-F with the opposite airflow. A new DCS-7060CX2-32S-R is also available. Matching spares include the PWR-500AC-R power supply and the FAN-7000-R fan module.
This seller refurbished DCS-7060CX2-32S-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 32x QSFP100 (40/100G, max 128x 25G or 128x 10G via breakout)
- Uplink Ports : 2x SFP+ (10G)
- Management Ports : 1x 100/1000 RJ-45 mgmt, 1x RS-232 RJ-45 console, 1x USB
- Switch Version : Arista EOS - Group 2
- System Memory : 8 GB RAM, 4 GB flash, Multi-Core x86 CPU
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Modules : 4 hot-swap (N+1)
- Power Supplies : 2x 500W AC (1+1 redundant, hot-swap)
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 3.3 Bpps
- MAC Address Table Size : 136,000
- Max IPv4 LPM Routes : 128,000 (ALPM)
- Max IPv6 LPM Routes : 84,000 (ALPM) - Unicast (prefix length <= 64)
- Max IPv4 Host Routes : 104,000
- Multicast Routes : 4,000
- VLANs Supported : 4096
- Packet Buffer : 22MB (Dynamic Buffer Allocation)
- Latency : 450 ns
- CPU : High Performance x86 CPU
- Model Number : DCS-7060CX2-32S-R
- Part Number : DCS-7060CX2-32S-R, JH977A
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7060CX2-32S-R HPE JH977A 32x 100GB QSFP 2x 10GB SFP+ B-F Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
