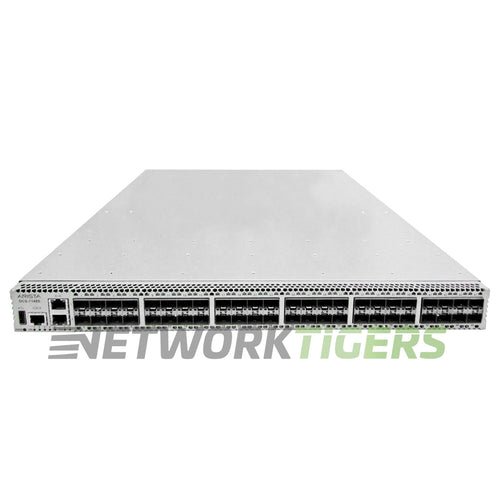

Arista DCS-7148S-F 7100 Series 48x 10GB SFP+ Front-to-Back Airflow Switch

Arista DCS-7148S-F 7100 Series 48x 10GB SFP+ Front-to-Back Airflow Switch

$ 484.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6283 ASK FOR QUOTE

Overview

The DCS-7148S-F is a 1RU, 48-port 10GB top-of-rack switch from the Arista 7100 Series. All 48 SFP/SFP+ ports run at 1GB or 10GB, so 1GB and 10GB hosts can share one switch.

Arista rates the 7148S at 800 Gbps of switching capacity and 600 Mpps, with 900 ns latency and 16K Layer 2 forwarding entries. EOS runs on a dual-core x86 CPU with 2 GB of DRAM and 2 GB of flash. Typical power draw is 360W. Management uses two 10/100/1000 ports, an RS-232 console on RJ45, and USB.

It has front-to-back airflow (port-side intake): the ports face the cold aisle and the fans exhaust toward the hot aisle. Five hot-swappable fans run N+1 and two hot-swappable 760W power supplies run 1+1 redundant. The chassis measures 17.4 x 1.75 x 20.25 in and weighs 29 lb. BGP, OSPF, ISIS, PIM and NAT need the Arista Enhanced L3 license (LIC-FIX-2-E), sold separately.

This listing ships with the switch, two AC power supplies, five fan modules, one power cord and one set of 2-post rack ears. 4-post rails are quoted separately.

For racks that need the ports on the hot aisle, choose the DCS-7148S-R back-to-front version. A DCS-7148S-F new open box unit is listed separately. For a spare fan, the FAN-7100-F fan module matches this airflow.

This seller refurbished Arista DCS-7148S-F switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 1/10GB SFP+
  • Management Ports : 2x 10/100/1000 mgmt, 1x RS-232 console, 1x USB
  • SFP Modules : None Included.
  • CPU : Dual-Core x86
  • VLAN ID's : 4094
  • AirFlow Direction : front-to-back (port-side intake)
  • Fan Module Options : FAN-7100-F
  • Power Supplies Included : 2x PWR-760AC (2 power supply bays)
  • Power Supply Options : PWR-760AC (760W AC)
  • PoE Budget : None
  • Switching Capacity : 800 Gbps
  • Forwarding Rate : 600 Mpps
  • MAC Address Table Size : 16,000
  • Latency : 900 ns
  • DRAM and Flash : 2 GB DRAM, 2 GB flash
  • Model Number : DCS-7148S-F
  • Part Number : DCS-7148S-F
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7148S-F 7100 Series 48x 10GB SFP+ Front-to-Back Airflow Switch as described above
  • One (1) Power Cord Included
  • Two (2) AC Power Supplies Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
