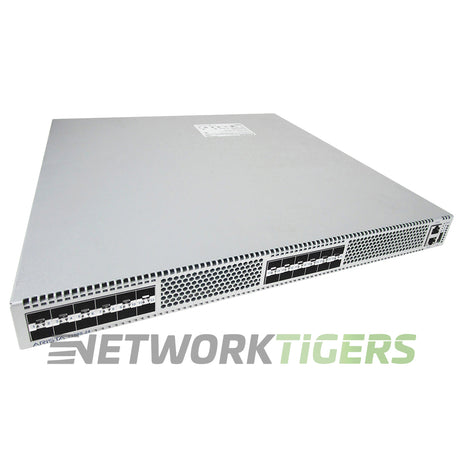

The 7150SC-24-CLD is the SC version of the 7150S-24, with a higher performance control plane, a high precision clock and a 120 GB SSD as standard. It has 24 SFP+ ports running at 100M to 10G, with 350 nanoseconds of latency and a 9.5 MB shared buffer.
IEEE 1588 PTP is supported, and AgilePorts can combine four 10G ports into a 40G interface. Arista rates the switch at 480 Gbps and 360 Mpps. The SSD gives room for local logging and packet capture, and the system has 4 GB DRAM. Power draw is 191W typical and 334W maximum.
Two 460W AC power supplies are installed in a 1+1 redundant pair, with PWR-460AC-R (460W AC) and PWR-460DC-R (460W DC) as spares. Four hot-swap FAN-7000-R fans in N+1 move air back-to-front (port-side exhaust). A front-to-back version also exists, so match the airflow to your rack.
Management is through a 100/1000 port, an RJ-45 RS-232 console and USB. The 1RU chassis weighs 18 lb. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Matching spares include the PWR-460AC-R power supply and the FAN-7000-R fan module.
This seller refurbished DCS-7150SC-24-CLD-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 100M-10G SFP+
- Management Ports : 1x 100/1000 mgmt, 1x RS-232 console (RJ-45), 1x USB
- System Memory : 120GB SSD
- CPU : Quad-Core x86
- VLAN ID's : 4096
- Packet Buffer : 9.5MB
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000-R
- Power Supplies Included : 2x 460W AC (1+1)
- Power Supply Options : PWR-460AC-R (460W AC), PWR-460DC-R (460W DC)
- PoE Budget : None
- Switching Capacity : 480 Gbps
- Forwarding Rate : 360 Mpps
- MAC Address Table Size : 64,000
- Latency : 350 ns
- DRAM and Flash : 4 GB DRAM, 120 GB SSD
- Model Number : DCS-7150SC-24-CLD-R
- Part Number : DCS-7150SC-24-CLD-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7150SC-24-CLD-R 24x 10GB SFP+ Back-to-Front Air (HPC) Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
