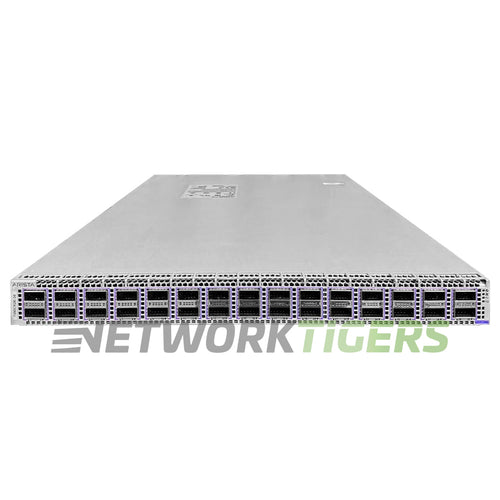

Arista DCS-7280CR2K-30-F 30x 100GB QSFP28 Front-to-Back Airflow Switch

$ 14,062.99
$ 11,137.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8381 ASK FOR QUOTE

Overview

The K in DCS-7280CR2K-30-F marks the large-route version of the Arista 7280R2 30-port switch. This 1RU unit has 30 100GbE QSFP100 ports, AlgoMatch-2 and expanded memory, and breakout supports up to 60 50GbE, 120 25GbE or 120 10GbE interfaces.

Route scale reaches 2M IPv4 LPM and 1.4M IPv6 LPM entries with 768K MAC addresses, which suits internet edge and peering roles that carry full tables. Capacity is 6 Tbps and 2.51 Bpps, with latency from 3.8 microseconds as listed by Arista. A 12 GB packet buffer and accelerated sFlow are included.

Power is supplied by two hot-swap 1600 W AC units (1+1), with PWR-1611-DC-RED available for DC sites. Five hot-swap FAN-7001D-F fans provide N+1 cooling, and the switch comes in front-to-back (port-side intake) airflow only. Typical power is 565 W, maximum 750 W.

At 26.4 inches deep (19 x 26.4 x 1.71 inches, 34.2 lb), check rack depth first. Management ports are 100/1000 RJ-45, RS-232 RJ-45 console and USB. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

A new DCS-7280CR2K-30-F is also available. Matching spares include the PWR-1600AC-F power supply and the FAN-7001D-F fan module.

This seller refurbished DCS-7280CR2K-30-F is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 30x 100GbE QSFP100 (max 60x 50GbE / 120x 25GbE / 120x 10GbE via breakout)
  • Port Supported Speeds : 100 / 50 / 40 / 25 / 10 Gbps
  • Management Ports : 1x 100/1000 RJ-45 mgmt, 1x RS-232 RJ-45 console, 1x USB
  • Switch Version : Arista EOS (Group 3) - Min EOS = 4.20.3 | AlgoMatch-2
  • System Memory : 32 GB DRAM (expanded memory), multi-core x86 CPU
  • AirFlow Direction : Front-to-back (port-side intake)
  • Fan Modules : 5 hot-swap (N+1), FAN-7001D-F
  • Power Supplies : 2x AC 1600 W (hot-swap, 1+1)
  • Switching Capacity : 6 Tbps
  • Forwarding Rate : 2.51 Bpps
  • MAC Address Table Size : 768,000
  • Max IPv4 LPM Routes : 1.3M
  • Max IPv6 LPM Routes : 1M
  • Max IPv4 Host Routes : 768K
  • Multicast Routes : Up to 768K
  • VLANs Supported : 4096
  • Packet Buffer : 12GB
  • Latency : from 3.8 microseconds
  • CPU : High Performance x86 CPU
  • Model Number : DCS-7280CR2K-30-F
  • Part Number : DCS-7280CR2K-30-F
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7280CR2K-30-F 30x 100GB QSFP28 Front-to-Back Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) Fan Modules Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
