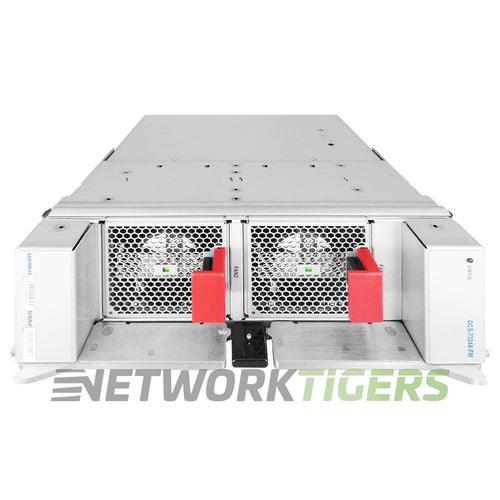

Arista DCS-7324X-FM-F 7324 Chassis Integrated Fans F-B Airflow Fabric Module

Arista DCS-7324X-FM-F 7324 Chassis Integrated Fans F-B Airflow Fabric Module

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-5400

Overview

The DCS-7324X-FM-F is the 7320X fabric module for the DCS-7304 chassis, which together with 7320X-32C line cards makes up the Arista 7324X. Fabric slots 1 to 4 each take one module, so four are required.

Fans are integrated into the module, and the spare fan part is FAN-7002H-F. The 7320X fabric is offered with forward airflow only, front-to-back (port-side intake), so there is no reverse version to pair with. Place the chassis with cold air on the port side and use forward-airflow power supplies.

Power draw per module is 192 W typical and 288 W maximum. Across four modules that is a substantial part of the chassis load, so include it when sizing power supplies.

This fabric is built for 7320X-32C line cards. 7300X and 7300X3 line cards are listed with their own fabric modules, so confirm which line cards the chassis will run before ordering a set of four.

A new DCS-7324X-FM-F is also available.

Line cards and fabric modules are hot-swappable in Arista modular chassis, so you can add or replace one without powering the chassis down.

This seller refurbished DCS-7324X-FM-F is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Module Type : Fabric Module
  • Airflow : Front-to-Back Airflow
  • Fans : Integrated
  • Compatible Devices : 7304 (DCS-7304)
  • Designed For : DCS-7304 Chassis
  • Model Number : DCS-7324X-FM-F
  • Part Number : DCS-7324X-FM-F
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7324X-FM-F Front-to-Back Airflow (Integrated Fans) Fabric Module as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
