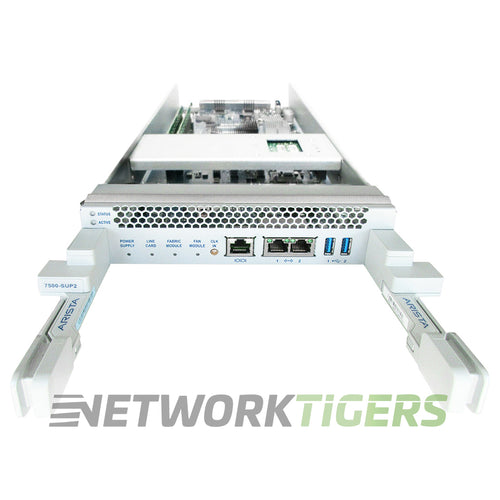

Arista DCS-7500-SUP2 7500R3 Series Switch Supervisor Module

Arista DCS-7500-SUP2 7500R3 Series Switch Supervisor Module

$ 158.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9712 ASK FOR QUOTE

Overview

The DCS-7500-SUP2 is the Supervisor-2 module for Arista 7500 Series chassis. It fits the 7504R, 7508R and 7512R and their R3 versions, which covers the DCS-7504, DCS-7508, DCS-7504N, DCS-7508N and DCS-7512N chassis. The 16-slot 7516 is the exception and takes the DCS-7516-SUP2 instead.

Processing comes from a 1.9 GHz multi-core x86 64-bit CPU with 32 GB of RAM and 4 GB of flash. This version has no SSD; a 120 GB SSD is optional, and the DCS-7500-SUP2-D is the same supervisor with the drive installed.

Management ports are two 100/1000 RJ-45 ports, one RS-232 serial port on RJ-45 and two USB 2.0 ports. Power is 80 W typical and 120 W maximum.

The module weighs 5 lb and measures 8.5 x 1.75 x 23 inches (W x H x D). Confirm the chassis model before ordering, since the 7516 needs its own supervisor, and note whether the installed supervisor has an SSD so a replacement matches it.

A new DCS-7500-SUP2 is also available.

Supervisors are hot-swappable, and a second supervisor in the chassis provides redundancy if one fails.

This seller refurbished DCS-7500-SUP2 is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Module Description : Supervisor
  • Type : Control Processor
  • Management Ports : 2x 100/1000 RJ-45 mgmt, 1x RS-232 RJ-45, 2x USB 2.0
  • Compatible Devices : 7504R, 7508R, 7512R, 7504R3, 7508R3, 7512R3
  • Designed for : 7500R3 Series
  • DRAM : 1.9 GHz multi-core x86, 32 GB RAM, 4 GB flash, SSD optional
  • Clock Speed : 1.9 GHz
  • Data Transfer Rate : 1 Gbps
  • Model Number : DCS-7500-SUP2
  • Part Number : DCS-7500-SUP2
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7500-SUP2 7500R3 Series Supervisor 2 Switch Module as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
