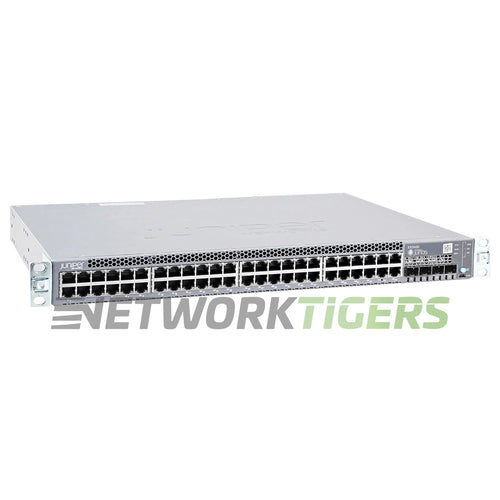

The Juniper EX3400-48T is a high-performing switch that offers advanced functionality in a compact form factor. With 48 1 Gbe RJ45 ports, this switch provides ample connectivity options for small to medium-sized networks.
The switching capacity of up to 176 Gbps and forwarding rate of up to 130 Mbps ensure fast data transfer rates. This unit has front-to-back or AFO airflow. This is ideal when the network cabling is in the cool corridor.
The EX3400-48T supports virtual chassis technology, allowing multiple switches to be interconnected and managed as a single logical device. This enhances scalability and simplifies network administration. The EX3400-48T is well-suited for environments where ethernet power is not needed. Due to its non-blocking architecture, it can easily handle demanding applications such as video streaming or database access.
Juniper EX3400-48T: EX3400 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately).
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x Console RJ-45, 1x Gigabit RJ-45, 1x USB
- Stacking Ports : Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10G/40G optic interfaces (40G uplink ports are preconfigured by default as Virtual Chassis ports).
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 2x EX3400-FAN-AFO Fan Module
- Power Supplies Included : 1x JPSU-150-AC-AFO AC Power Included - 2x Slots available
- Switching Capacity : 336 Gbps
- Forwarding Rate : 250 Mpps
- MAC Address Table Size : 32,000
- DRAM and Flash : 2GB (DRAM)
- Model Number : EX3400-48T
- Part Number : EX3400-48T
- Condition : Seller refurbished
- One (1) Seller Refurbished Juniper EX3400-48T 48x 1GB RJ-45 4x 1GB SFP+ 2x 40GB QSFP+ F-B Airflow Switch as described above
- One (1) AC Power Supply Included
- One (1) Power Cord Included
- Two (2) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
