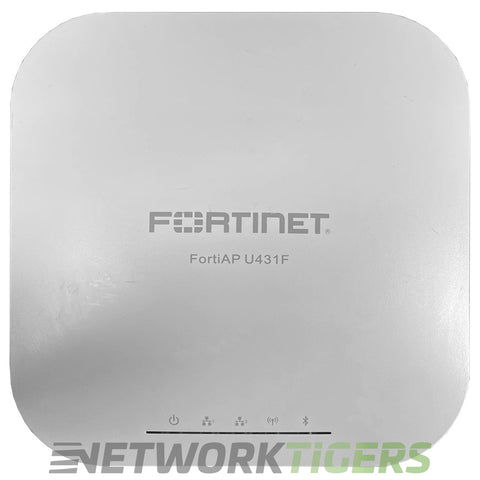

Fortinet FAP-U431F-A is a FortiAP Tri-Radio wireless access point from Fortinet in an internal-antenna ceiling-mount form factor. It supports IEEE 802.11ax (Wi-Fi 6) operation with maximum data rates up to 4,804 Mbps and provides tri-band connectivity across the 2.4 GHz and multiple 5 GHz frequency ranges.
The unit incorporates PIFA antennas rated at approximately 4 dBi for the 2.4 GHz band and 6 dBi for the supported 5‑GHz channels spanning 5.150–5.850 GHz bands per regional compliance limits. Power options include PoE+ compatible Ethernet input through standard RJ45 interfaces..
Fortinet FAP-U431F-A:: Indoor Wireless UTP AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP43F-PA-X-5. This unit is not registrable on the FortiCloud - it is set up for local management only.

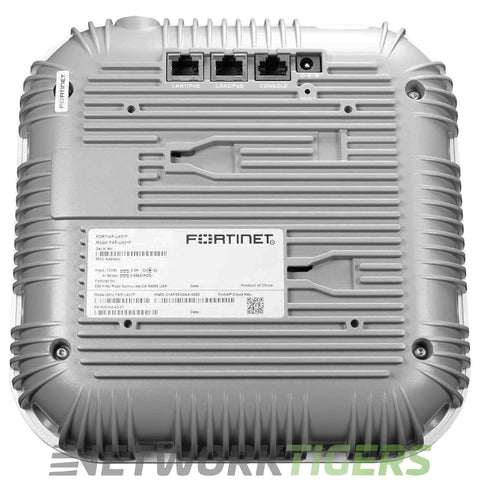

- Interface Ports : 1x 2.5 Gigabit Ethernet PoE+ RJ45, 1x 1 Gigabit Ethernet PoE+ RJ45

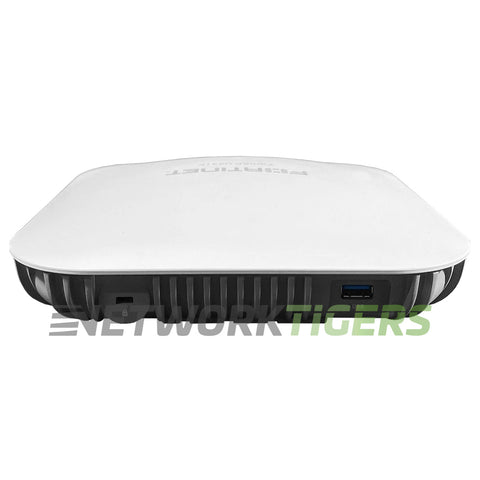

- Management Ports : 1x Type A USB, 1x RS-232 RJ45 Serial Port
- Antennas : 10 Internal + 1 BLE Internal
- Antenna Type and Information : PIFA 4 dBi for 2.4 GHz, 6 dBi for 5 GHz
- Power Options : PoE - IEEE 802.3at or dual 802.3af Power (PoE injector GPI-130 not included). SP-FAP43F-PA-X-5 Power Adapter (Not Included)
- Frequency : 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
- Registrable : No - This unit is not registrable on the FortiCloud - it is set up for local management only
- Maximum Data Rate : 4,804 Mbps
- Radios : 3 + 1 BLE
- Mounts : Mount kits for Ceiling, T-Rail, and Wall Included
- Model Number : FAP-U431F-A
- Part Number : FAP-U431F-A
- Condition : New
- One (1) NEW Fortinet FAP-U431F-A FortiAP Tri Radio 802.11ax Local Management Only WAP as described above
- One (1) Ceiling and One (1) Wall Mount Bracket Included
