Fortinet FG-3700D, manufactured by Fortinet, is a 2U rackmount network security appliance featuring multiple 10-GbE and 40-GbE interfaces. It supports stateful throughput of up to 160 Gbps (1518 /512-byte packets) and firewall throughput up to 165 Mpps.
The unit handles NGFW throughput at 20 Gbps with threat protection rated at 13 Gbps using enterprise traffic mix. Designed for integration in data centers or high-volume networks, it supports up to fifty million concurrent sessions and delivers IPsec VPN performance of up to 100 Gbps.

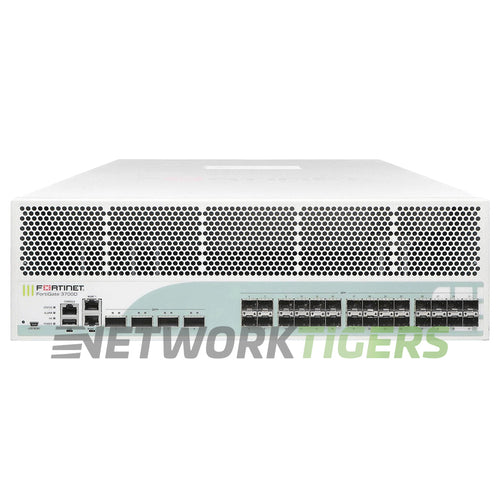

Fortinet FG-3700D: 4x 40 GE QSFP+ slots, 28x 10 GE SFP+ slots, 2x GE RJ45 Management, SPU NP6 and CP8 hardware accelerated, 4 TB (2x 2TB) HDD onboard storage, and dual AC power supplies. This unit is not registrable on the FortiCloud - it is set up for local management only.
- Network Ports : 20x 10 Gigabit Ethernet SFP+, 8x 10 Gigabit Ethernet SFP+ (Ultra-low latency)
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x Mini USB Mgmt, 1x RJ45 Console, 1x RJ45 Mgmt
- Registrable : No - This unit is not registrable on the FortiCloud - it is set up for local management only
- Fans / Airflow Direction : Fixed Internal

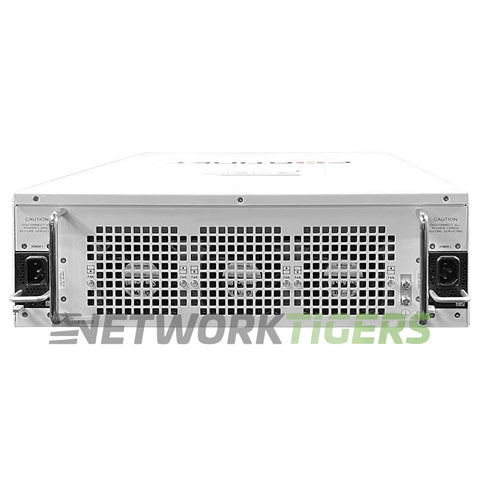

- Power : 2x SP-FG3800D-PS AC PSU's - 100–240V AC, 50/60 Hz - Hot Swappable
- Stateful Throughput : 160 / 160 / 110 Gbps (1518 / 512 / 64 byte, UDP)
- Firewall Throughput : 165 Mpps
- IPS Throughput : 28 Gbps (Enterprise Traffic Mix)
- Threat Protection Throughput : 13 Gbps (Enterprise Traffic Mix)
- NGFW Throughput : 20 Gbps (Enterprise Traffic Mix)
- Concurrent Sessions : 50 Million
- New Sessions/Second : 400,000
- IPsec VPN Throughput : 100 Gbps
- IPsec VPN Tunnels : 40,000 (Gateway-to-Gateway), 200,000 (Client-to-Gateway)
- SSL-VPN Throughput : 10 Gbps
- SSL Inspection Throughput : 15.5 Gbps
- Hard Drive : 2x 2 TB HDD
- Model Number : FG-3700D
- Part Number : FG-3700D
- Condition : Seller refurbished
- One (1) Seller refurbished Fortinet FG-3700D FortiGate 3700D Series 160 Gbps Local Management Only Firewall as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Brackets Not Included
