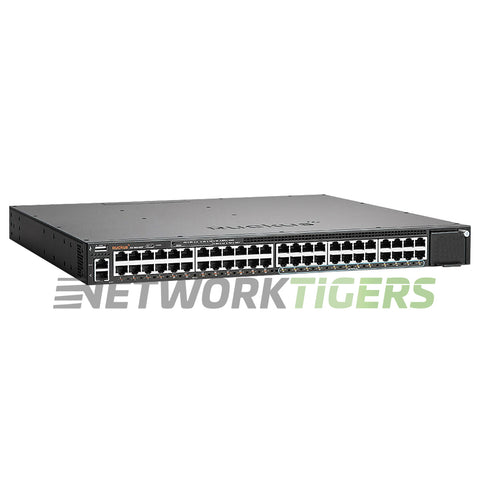

The Ruckus Brocade ICX7650-48ZP-E is a high-performance switch designed for data-intensive networks. With 48 MultiGB RJ-45 ports and 4x 40GB QSFP+ uplink ports, it provides ample bandwidth for demanding applications.
The switch has a switching capacity of 1.128 Tbps and can handle forwarding rates of up to 839 Mpps, making it suitable for heavy traffic environments. It supports various expansion modules like the ICX7650-1X100GQ, ICX7650-2X40GQ, and ICX7650-4X10GF. With an MAC Address Table Size of 80,000 entries, this switch offers scalability and flexibility in network deployments.
Ruckus ICX7650-48ZP-E: 48-port; 24-port 100MbE/1GbE/2.5GbE/5Gb E/10GbE POH, 24-port 1 GbE switch PoE+, 4xQSFP (either 2x100G or 4x40G active), modular slot. This bundle includes 1x 1000W AC power supply and 1x fan, front-to-back airflow, port modules sold separately.
- Network Ports : 24x 100MbE/1GE/2.5GE/5GE/10 Gigabit Ethernet PoE+/PoH/UPoE RJ-45, 24x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
- Management Ports : 1x Out of Band Management RJ-45, 1x Serial Console RJ-45, 1x USB Type C, 1x USB Type A
- Stacking Ports : Can stack on 4x 40G or 2x 100G rear facing QSFP ports - Aggregated stacking bandwidth (data rate, full duplex) = 2.4 Tbps
- Stacking Cable Options : Various Ruckus 40G/100G QSFP cables
- Module Slots : 1x Expansion Module Slot - Modules not included
- Module Options : ICX7650-1X100GQ (1-port 100GbE QSFP28), ICX7650-2X40GQ (2-port 40GbE QSFP+), ICX7650-4X10GF (4-port 1/10GbE SFP+)
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 2x Fan Module Slots - 1x ICX-FAN12-E Fan Module Included - Front to Back Airflow
- Power Supplies Included : 1x RPS16-E 1000W AC PSU Included - 2x PSU Slots - 2nd PSU ordered separately
- Power Supply Options : RPS16-E, RPS16-I
- PoE Budget : 1500 W
- Switching Capacity : 1.128 Tbps
- Forwarding Rate : 839 Mpps
- MAC Address Table Size : 80,000
- DRAM and Flash : 4GB DRAM
- Model Number : ICX7650-48ZP-E
- Part Number : ICX7650-48ZP-E
- Condition : New
- One (1) NEW Ruckus Brocade ICX7650-48ZP-E 48x MultiGB PoE+ RJ45 4x QSFP+ 1x Slot Switch as described above
