Cisco ISR4451-X-V/K9 Integrated Services 4451 Router w/ PVDM4-64

Cisco ISR4451-X-V/K9 Integrated Services 4451 Router w/ PVDM4-64

$ 646.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8979 ASK FOR QUOTE
UPC: 882658597367

Overview

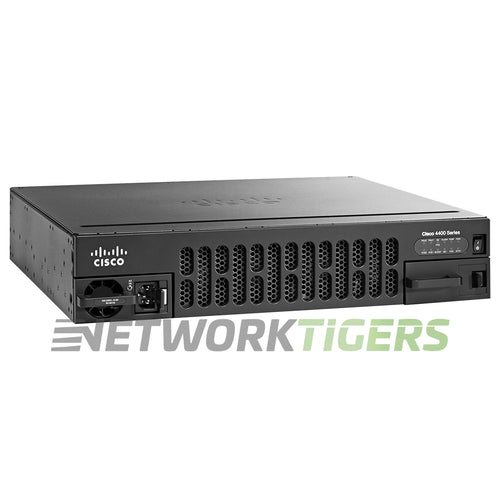

The Cisco ISR4451-X-V/K9 is the voice bundle of the ISR 4451-X, a 2RU modular router in the Cisco ISR 4000 Series. It combines the ISR4451-X/K9 chassis with a PVDM4-64 voice DSP module and the UC (Unified Communications) license.

The chassis carries four onboard 10/100/1000 Ethernet ports, and Cisco's port table lists all four as RJ45-based and all four as SFP-based. Expansion comes through three NIM slots, two SM-X service module slots (or one double-wide SM-X module), and one onboard ISC slot that Cisco says natively supports PVDM4 voice DSP modules. The bundled PVDM4-64 installs in that slot and handles 64 low-complexity channels (including G.711), 48 medium, or 32 high-complexity channels.

Cisco's default build pairs 4 GB of control plane DRAM (expandable to 16 GB) with 2 GB of data plane DRAM, plus 8 GB of CompactFlash (expandable to 32 GB). Aggregate throughput is 1 Gbps by default and 2 Gbps with the FL-44-PERF-K9 performance license, which is not included and sold separately.

Power comes from two internal power supply bays, and Cisco's default is one PWR-4450-AC 450 W AC supply. This listing ships with the PVDM4-64 module, two AC power supplies, two power cords, and one set of rack mount brackets. Network modules and transceivers are not included.

If you want the same bundle new open box, see the ISR4451-X-V/K9 new open box router. For more DSP capacity, the PVDM4-128 128-channel voice DSP module fits the same ISC slot.

This seller refurbished Cisco ISR4451-X-V/K9 router is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 4x 1 Gigabit Ethernet RJ45 (WAN or LAN)
  • Uplink Ports : 4x 1GB SFP
  • Management Ports : 1x RJ45 Serial Console, 1x Gigabit RJ45 Management, 1x Mini-USB Type B Console, 1x AUX, 2x USB 2.0
  • Module Slots and Options : 3x NIM, 2x SM-X (or 1x double-wide SM-X), 1x ISC (supports PVDM4) - modules not included
  • : 1x PVDM4-64 Unit Included
  • DRAM : 4 GB control plane (default) / 16 GB (max), 2 GB data plane (default and max)
  • Flash : 8 GB (default), 32 GB (maximum)
  • Power Supplies : 2x AC power supplies (2 power supply bays)
  • Performance : 1 Gbps aggregate (default), 2 Gbps with FL-44-PERF-K9 performance license (not included)
  • Rack Mounts : Included (2RU)
  • Model Number : ISR4451-X-V/K9
  • Part Number : ISR4451-X-V/K9, ISR4451-X-V/K9=, ISR4451-X-V/K9-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco ISR4451-X-V/K9 Integrated Services 4451 Router w/ PVDM4-64 as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • One (1) Set of Rack Mount Brackets Included
  • One (1) PVDM4-64 Module Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
