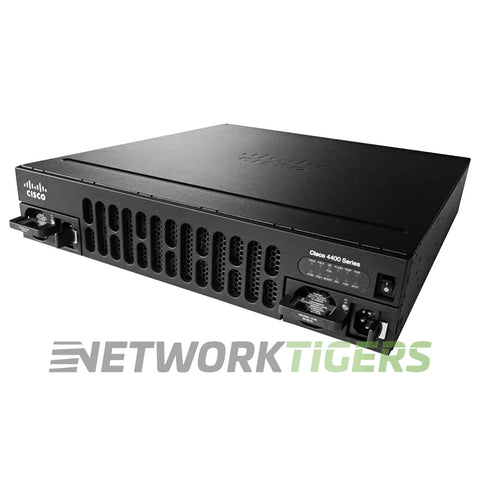

The Cisco ISR4451-X/K9 is the base chassis part number of the ISR 4451-X, a 2RU modular router in the Cisco ISR 4000 Series, without the security, voice, or application bundles Cisco sells under other part numbers.
The chassis carries four onboard 10/100/1000 Ethernet ports, and Cisco's port table lists all four as RJ45-based and all four as SFP-based. Expansion comes through three NIM slots, two SM-X service module slots (or one double-wide SM-X module), and one onboard ISC slot that Cisco says natively supports PVDM4 voice DSP modules.
Cisco's default build pairs 4 GB of control plane DRAM (expandable to 16 GB) with 2 GB of data plane DRAM, plus 8 GB of CompactFlash (expandable to 32 GB). Aggregate throughput is 1 Gbps by default and 2 Gbps with the FL-44-PERF-K9 performance license, which is not included and sold separately.
Power comes from two internal power supply bays, and Cisco's default configuration for this part has one PWR-4450-AC 450 W AC supply. This listing is one new open box router as described.
If a seller refurbished unit suits the project, see the ISR4451-X/K9 seller refurbished router. The ISR4451-X-SEC/K9 security bundle router adds the SEC license to the same chassis, and a spare PWR-4450-AC 450 W AC power supply is listed separately.
This Cisco ISR4451-X/K9 router is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 4x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 1GB SFP
- Management Ports : 1x RJ45 Serial Console, 1x RJ45 Management; 1x Mini-USB Type B Console; 1x AUX; 2x USB 2.0
- Module Slots and Options : 3x NIM, 2x SM-X (or 1x double-wide SM-X), 1x ISC (supports PVDM4) - modules not included
- DRAM : 4 GB control plane (default) / 16 GB (max), 2 GB data plane (default and max)
- Flash : 8 GB CompactFlash (default) / 32 GB (max)
- Power Supplies : 1x PWR-4450-AC (2 power supply bays)
- Aggregate Throughput : 1 Gbps to 2Gbps
- Fan : 1 x ACS-4450-FANASSY Included
- Rack Mounts : Included (2RU)
- Model Number : ISR4451-X/K9
- Part Number : ISR4451-X/K9, ISR4451-X/K9=, ISR4451-X/K9-WS
- Condition : New
- One (1) NEW Cisco ISR4451-X/K9 4x 1GB RJ45 4x SFP 6x Slot (3x NIM 2x SM 1x ISC) Router as described above
