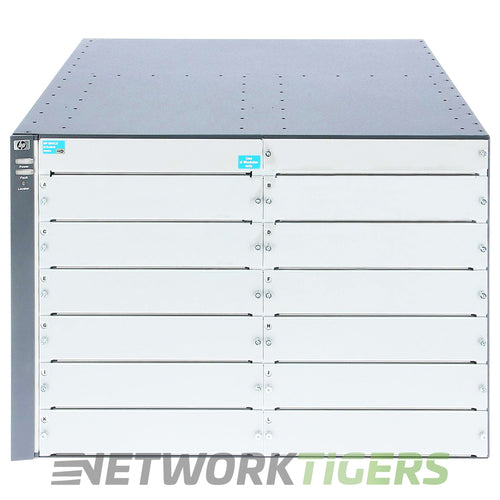

HPE J9540A 92x 1GB PoE+ RJ-45 4x 1GB SFP 8x Open Module Slots Switch w/ Premium

HPE J9540A 92x 1GB PoE+ RJ-45 4x 1GB SFP 8x Open Module Slots Switch w/ Premium

$ 6,666.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-4745
UPC: 885631941508


The HPE J9540A switch is a high-performance device designed for enterprise networks. It features 92x 1GB PoE+ RJ-45 ports, allowing you to power network devices such as IP phones and wireless access points directly from the switch. It includes 4x 1GB SFP uplink ports connecting to other switches or routers.

In a fully populated chassis, the J9540A can offer a robust switching capacity of up to 758.4 Gbps and a forwarding rate of up to 564.2 Mpps, ensuring smooth data transmission throughout your network even during peak hours.

This switch also boasts an expansive MAC address table size of up to 64k entries, easily accommodating large-scale deployments while maintaining efficient packet delivery rates with low latency - less than 3.7 μs (FIFO) in handling small-sized packets.

HPE J9540A: HPE 5412-92G-PoE+-4G v2 zl Switch with Premium Software.


  • Network Ports : 92x 1 Gigabit Ethernet PoE+ RJ-45 (Through use of Modules)
  • Uplink Ports : 4x 1 Gigabit Ethernet SFP (Through use of Modules)
  • Management Ports : 1x RS-232C DB-9 Console , 1x USB
  • Product Family : 5400zl Series
  • Module Slots and Options : 12x Expansion Module Slots Available (4x Module Slots in use) - 8x Free Expansion Module Slots Slots - Modules Included are 3x J9534A (24x 1 Gigabit PoE+ RJ-45), 1x J9535A (20x 1 Gigabit PoE+ RJ-45 4x 1 Gigabit SFP)
  • Expansion Module Options : J9546A, J8708A, J8707A, J9309A, J9538A, J9536A, J9535A, J9537A, J9637A, J8702A, J9308A, J8705A, J8706A, J9307A, J9534A, J9478A, J9547A, J9550A, J9549A, J9548A, J9857A, J9858A
  • Firmware Version : Premium Software
  • Power Supplies Included : 2x J9306A Power Supplies included - 4x Power Supply Slots - 2x Power Supplies required - Power Supply options are - 1500W (J8713A), 875W (J8712A) (Not included)
  • PoE Budget : 2760W
  • Switching Capacity : 758.4 Gbps
  • Forwarding Rate : 564.2 Mpps
  • MAC Address Table Size : 64000
  • Latency : < 3.7 µs (FIFO 64-byte packets) (1000Mb)
  • Rack Mounts : Included
  • Model Number : J9540A
  • Part Number : J9540A, J9540AR
  • Condition : Seller refurbished


  • One (1) Seller Refurbished HPE J9540A 92x 1GB PoE+ RJ-45 4x 1GB SFP 8x Open Module Slots Switch w Premium as described above
  • Two (2) Power Supplies (J9306A) Included
  • Three (4) Modules (J9534A) Included
  • One (1) Module (J9535A) Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
