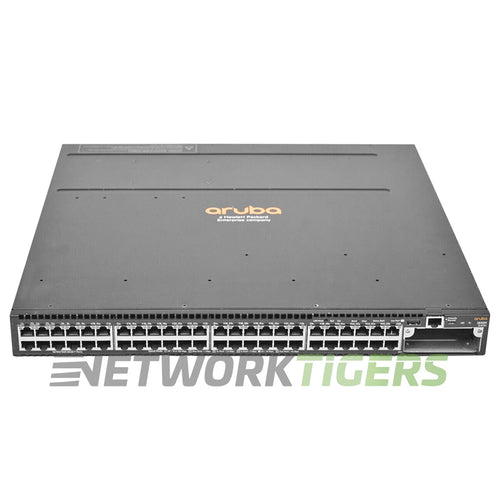

HPE Aruba JL072A 3810 Series 48x 1GB RJ-45 1x Expansion Module Slot Switch

HPE Aruba JL072A 3810 Series 48x 1GB RJ-45 1x Expansion Module Slot Switch

$ 479.99
$ 342.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6680
UPC: 888793596586

Overview

The HPE Aruba JL072A 3810 Series switch is an impressive addition to any network infrastructure. With its high switching capacity of 320 Gbps and forwarding rate of 190.5 Mpps, this switch can easily handle heavy workloads.

The JL072A has an extensive MAC Address Table Size, which supports up to 64000 entries. This allows for efficient handling and management of large networks without reducing performance or speed.

The JL072A performs exceptionally well with a maximum delay of less than 2.8 uS for FIFO packets measuring at least 64 bytes in length when operating at speeds up to gigabit per second (1000mb). This ensures minimal response time during data transmission and enhances overall efficiency.

This versatile series also includes an Expansion Module Slot that offers additional flexibility and scalability depending on specific requirements or future growth plans.

Aruba JL072A: 48x Gigabit Ethernet RJ-45, 1x RJ-45 serial console, 1x RJ-45 out-of-band management, 1x Dual-personality (RJ-45 or USB micro-B), 1 x Stacking module slot - Not Included - Sold Separately, 1 x Module Slot available - Supports a maximum of 4 SFP+ ports or 2 40 GbE ports, with optional module.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ-45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ-45 serial console, 1x RJ-45 out-of-band management, 1x Dual-personality (RJ-45 or USB micro-B)
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
  • Power Supplies Included : 2x Slots (Min 1x Required) - Ordered Separately - options are - JL085A (250W AC), JL086A (680W AC), JL087A (1050W)
  • Stacking Members : Ring, chain, and mesh topologies support up to a 10-member ring or chain and 5-member fully meshed stacks; meshed topologies offer increased resiliency vs. a standard ring
  • Switching Capacity : 320 Gbps
  • Forwarding Rate : 190.5 Mpps
  • MAC Address Table Size : 64000 entries
  • Latency : 1000mb - < 2.8 uS (FIFO 64-byte packets)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL072A
  • Part Number : JL072A
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Aruba HPE JL072A 3810 Series 48x 1GB RJ-45 1x Expansion Module Slot Switch as described above
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Power Supplies Not Included
