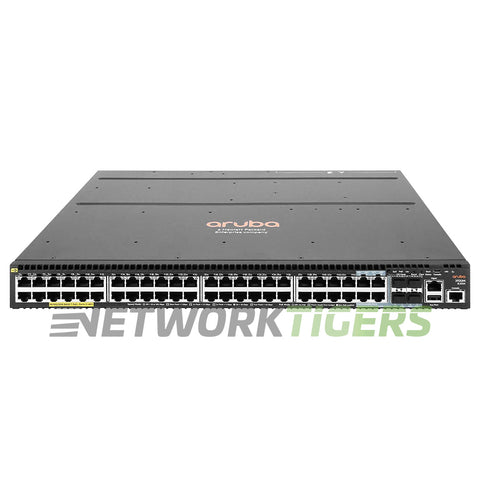

The HPE Aruba JL322A is the 48-port PoE+ model in the Aruba 2930M series, a Layer 3 access switch for closets that power a large number of IP phones, wireless access points and cameras.
All 48 front ports carry PoE+ (IEEE 802.3at): 44 are 10/100/1000 RJ45 ports and 4 are dual-personality combo ports that work either as PoE+ gigabit copper or as SFP slots for transceivers. A single uplink module slot adds the JL078A 1-port 40GbE QSFP+, the JL083A 4-port SFP+ MACsec or the JL081A 4-port 1/2.5/5/10GbE Smart Rate module. HPE rates switching capacity at 176 Gbps and forwarding at 112 Mpps.
PoE capacity depends on the power supplies in the switch. HPE states up to 1440W of PoE as the maximum, reached with 2 power supplies, with no per-supply PoE budget published. The switch has 2 power supply bays, needs at least 1 supply and takes the JL086A 680W or JL087A 1050W supply; the JL085A non-PoE supply does not fit. Airflow is front-to-back (port-side intake).
Stacking uses the optional JL325A 2-port module in the dedicated stacking slot, with J9734A, J9735A or J9736A cables, for ring stacks of up to 10 switches.
This listing is the switch alone: power supplies, transceivers and modules are not included.
If you need multigigabit ports, the new JL323A 2930M switch with 8 Smart Rate PoE+ ports keeps the same power supplies. A seller refurbished unit of this model is also listed.
This HPE Aruba JL322A switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 44x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 1 Gigabit Combo (1 Gigabit Ethernet PoE+ RJ45 or 1GB SFP)
- Management Ports : 1x Dual Personality Serial Console (RJ45 or USB Micro-B), 1x USB Type A, 1x 100BASE-T Out of Band Management RJ45
- Stacking Ports : 1x Stacking Module Slot - Not included
- Stacking Options : JL325A 2-port Stacking Module (not included)
- Stacking Cable Options : J9734A (0.5m), J9735A (1m), J9736A (3m)
- Module Slots : 1x Expansion Module Slot - Modules are not included
- Module Options : JL078A (1x 40GB QSFP+), JL083A (4x 10GB SFP+ MACsec), JL081A (4x 1/2.5/5/10 Gigabit Ethernet RJ45 Smart Rate) - None Included
- AirFlow Direction : Front-to-back (port-side intake) only - no back-to-front version
- Power Supplies Included : None included (2 power supply bays)
- Power Supply Options : JL086A (680W), JL087A (1050W)
- PoE Budget : Up to 1440W (HPE maximum, with 2 power supplies)
- Switching Capacity : 176 Gbps
- Forwarding Rate : 112 Mpps
- MAC Address Table Size : 32768
- Latency : < 3.1µs at 1000 Mbps (FIFO 64-byte packets)
- DRAM and Flash : 1GB DDR3 SDRAM, 4GB eMMC
- Model Number : JL322A
- Part Number : JL322A
- Condition : New
- One (1) NEW HPE Aruba JL322A 44x 1GB PoE+ RJ45 4x 1GB Combo 1x Module Slot Switch as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
- Power Supplies Not Included
