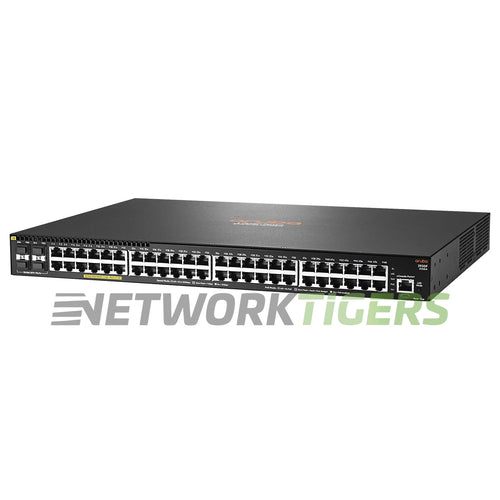

HPE Aruba JL558A 2930F Series 48x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch

HPE Aruba JL558A 2930F Series 48x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch

$ 1,559.99
$ 1,254.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8284
UPC: 190017219677

Overview

The HPE Aruba JL558A 2930F Series Switch is a powerful and reliable network switch designed for high-performance data centers. Its 48x 1GB PoE+ RJ-45 ports and 4x 10GB SFP+ uplink ports provide ample connectivity options.

One of the key features of this switch is its generous PoE budget of 740W, compliant with the IEEE 802.3at standard. This allows you to power various devices without additional power sources, such as IP phones, cameras, and wireless access points.

With a switching capacity of up to 176 Gbps and a forwarding rate of 112 Mpps (million packets per second), this switch ensures smooth and efficient data transmission even in demanding applications.

The MAC Address Table Size supports up to 32,768 addresses, making it suitable for networks with multiple connected devices.

Aruba JL558A: 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45 (802.3at provides up to 30W per port)
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x Dual-Personality (RJ-45 or USB micro-B) Serial Console
  • Product Family : 2930F Series
  • Fan Modules AirFlow Direction : Side to Side Airflow Direction.
  • Power Supplies Included : 1x Internal AC Power Supply
  • PoE Budget : 740W PoE+ (802.3at)
  • Switching Capacity : 176 Gbps
  • Forwarding Rate : 112.0 Mpps
  • MAC Address Table Size : 32,768
  • Latency : < 3.8 us (64-byte packets) (1000Mb)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL558A
  • Part Number : JL558A#ABA, 2930F 48G PoE+ 4SFP+, 48GPOE+4SFP+740W, JL558-61001
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Aruba HPE JL558A 48x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
