HPE Aruba JL662A CX 6300 Series 24x 1GB PoE+ RJ-45 4x 50GB SFP56 Switch

~~$ 2,875.99~~
$ 1,966.99

8 in stock Call if you need more

Main Quantity

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSB-8068

UPC: 190017339467

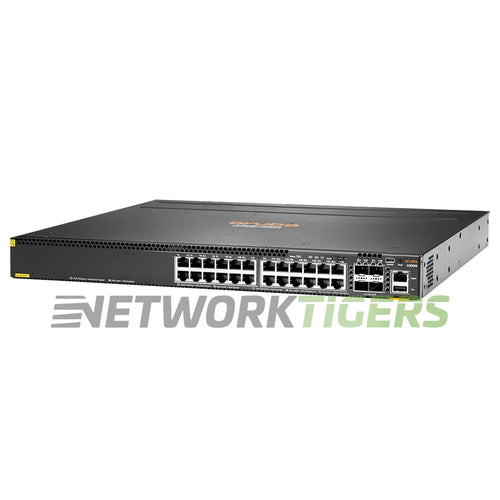

The HPE Aruba JL662A CX 6300 Series is a high-performance switch designed for enterprise networks. Its 24x 1GB PoE+ RJ-45 ports and 4x 25GB SFP56 ports offer flexibility in connecting various devices.

One key feature of this switch is its generous PoE budget of up to 720W, which enables the power supply to compatible devices such as IP phones or security cameras over Ethernet cables.

With an impressive switching capacity of up to 448 Gbps and a forwarding rate of up to 334 Mpps, this switch ensures fast data transmission with low latency. Its MAC Address Table Size can accommodate up to 32,768 entries.

Aruba JL662A: Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch.

Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, and 25GB for a total of up to 200 Gbps of stacking throughput per switch
Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
AirFlow Direction : Front-to-Back Airflow
Fan Module Options : 1x JL669A Fan Tray Included - 2x Fan Tray Slots - JL761A is an option for Back-to-Front Airflow
Power Supplies Included : 2x PSU Slots - None Included - 1x Min Required - Ordered Separately
Power Supply Options : JL086A (680W AC), JL087A (1050W AC), JL670A (1600W AC)
PoE Budget : 720W
Switching Capacity : 448 Gbps
Forwarding Rate : 334 Mpps
MAC Address Table Size : 32,768
1Gbps : = 2.28μSec, 10Gbps = 1.46μSec, 25Gbps = 1.90μSec, 50Gbps = 3.49μSec
DRAM and Flash : 8GB DDR4, 32GB eMMC
Model Number : JL662A
Part Number : JL662A, JL662A#ABA
Condition : Seller refurbished

More information on this HPE JL662A.

One (1) Seller refurbished HPE Aruba JL662A CX 6300 Series 24x 1GB PoE+ RJ-45 4x 50GB SFP56 Switchh as described above
One (1) Fan Module Included
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
Transceiver Modules Not Included
Power Supplies Not Included
Power Cord Not Included
