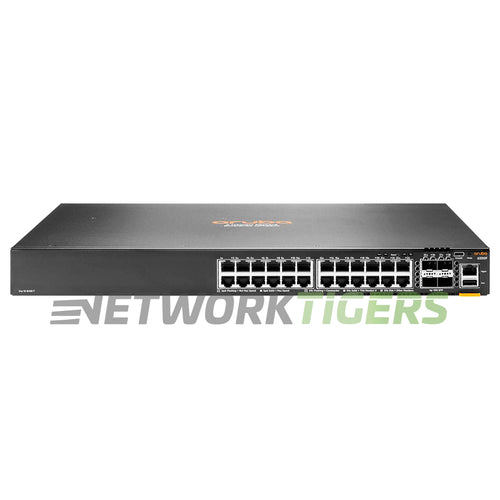

The HPE Aruba JL724A CX 6200 Series is a high-performance switch for efficient network operations. With its 24x 1GB RJ-45 port configuration and 4x10GB SFP+, this switch provides flexible connectivity options.
Featuring a switching capacity of up to 128 Gbps, the JL724A ensures smooth data flow throughout your network. Its forwarding rate of up to 95.2 Mpps guarantees fast packet delivery, meeting demanding performance requirements.
Equipped with a MAC address table size of 16,000 entries, this switch efficiently manages device connections in larger networks. The average latency ranges from (microsecond) at speeds below or equal to 1Gbps and improves even further to an impressive sub-microsecond level (approximately 0.5 µs) when operating at higher speeds like 10Gbps.
HPE Aruba JL724A: 24x ports 10/100/1000BASE-T Ports, 4x 1/10G SFP ports, 1x USB-C Console Port ,1x OOBM, 1x USB Type-A Host port, 1x Bluetooth dongle to be used with Aruba CX Mobile App.
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (Used for Stacking)
- Management Ports : 1x USB-C Console, 1x OOBM, 1x USB Type-A Host, 1x Bluetooth dongle to be used with Aruba CX Mobile App
- Stacking Ports : The Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. The 4x 10GB SFP+ ports support speeds of 1GbE and 10GbE
- Stack Size : Up to 8 Members | Switched Virtual Interfaces (dual stack) = 128
- Stacking Cable Options : Various DAC Cables
- Fan Module Options : Fixed fans
- Power Supplies Included : 1x Internal 200W AC PSU
- Switching Capacity : 128 Gbps
- Forwarding Rate : Up to 95.2 Mpps
- MAC Address Table Size : 16,000
- Latency : 2.28 μSec (1 Gbps), 1.46 μSec (10 Gbps)
- Model Number : JL724A
- Part Number : JL724A, JL724A#ABA
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba JL724A CX 6200 Series 24x 1GB RJ-45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
