The HPE Aruba JZ337ACM CM AP-535 (US) Dual Radio 802.11ax WAP operates on both the 2.4 GHz and 5GHz frequencies, providing an aggregate bandwidth of up to 3.55 Gbps with its high-speed connectivity capabilities.
The maximum data rate for the device is outstanding, delivering up to 1.150 Mbps at a speed in the lower spectrum and reaching impressive speeds of up to 2.4 Gbps when operating in the higher frequency range.
Equipped with MU-MIMO OFDMA technology, this wireless access point ensures efficient multi-user performance by allowing multiple devices to transmit simultaneously without compromising speed or reliability within a US regulatory domain setting such as homes or businesses needing reliable Wi-Fi coverage throughout their environment.

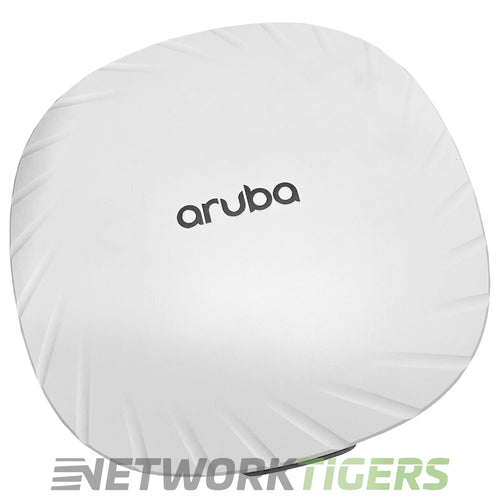

HPE Aruba JZ337ACM CM AP-535 (US) Dual Radio 802.11ax 4x4:4 MU-MIMO OFDMA WAP
- Wi-Fi Standard : Wi-Fi 6 (802.11ax) - OFDMA - Bidirectional MU-MIMO (uplink and downlink in 5 GHz - downlink only in 2.4 GHz)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises controller/gateway - Central Managed (CM)
- Suggested Use : Indoor enterprise campus environments
- Region : US
- Radios : Dual radio - 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 4x4 MIMO
- Spatial Streams per Radio : 4
- Maximum Data Rate : 2.97 Gbps combined (2.4 Gbps @ 5 GHz HE80 - 574 Mbps @ 2.4 GHz HE20)
- Bluetooth / IoT Radios : Bluetooth 5.0 BLE and Zigbee (802.15.4) - 2.4 GHz
- PoE Standard : 802.3at (class 4) or 802.3bt (class 5) (E0 and/or E1) - Injector sold separately
- DC Power Input : 48 Vdc nominal (+/-5%) - 1.35 mm / 3.5 mm center-positive circular plug - 9.5 mm length - Adapter sold separately
- Uplink Ports : 2x 100/1000/2500/5000BASE-T HPE SmartRate RJ-45 (E0 and E1)
- Other Ports : 1x USB 2.0 Type-A (up to 1A/5W), 1x Serial console (micro-B USB)
- Antenna Type : Internal - 4x integrated dual-band downtilt omnidirectional - 3.5 dBi peak @ 2.4 GHz - 5.4 dBi peak @ 5 GHz - BLE/Zigbee integrated omnidirectional 3.1 dBi peak
- Antenna Ports : N/A - Internal Antenna
- Mounting Options : Sold Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
- Mounts Included : Mounting bracket pre-installed on back of unit - additional mount kits sold separately
- Model Number : JZ337ACM
- Part Number : JZ337ACM, AP-535, AP-535-US, APIN0534
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-535 JZ337ACM US Wi-Fi 6 802.11ax Int Ant Central Managed WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
