The nVidia MCX515A-CCAT ConnectX-5 is a PCIe Gen3 x16 low-profile network interface card manufactured by NVIDIA. It supports dual 100Gb/s Ethernet ports via QSFP28 interfaces, providing high-speed data transmission in compact form factor systems.
This model supports compatibility with standard server platforms using the PCI Express 3.0 slot and operates on system-supplied power without requiring external adapters. Designed for use in dense computing environments, it uses passive or active cooling depending on chassis airflow configurations. The device includes two physical ports and can be mounted horizontally within supported rackmount servers that meet size constraints of low-profile cards.

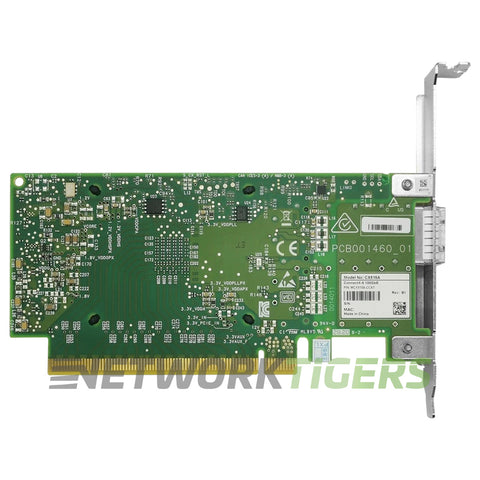

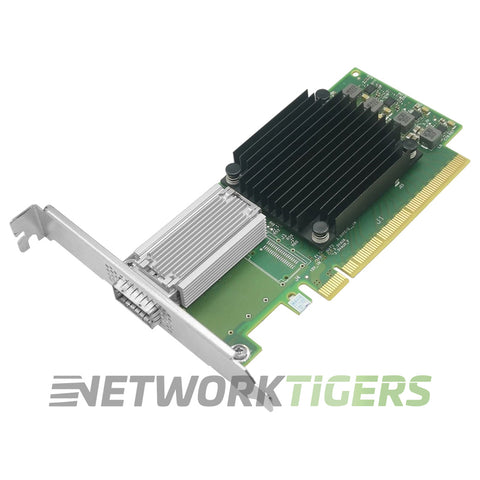

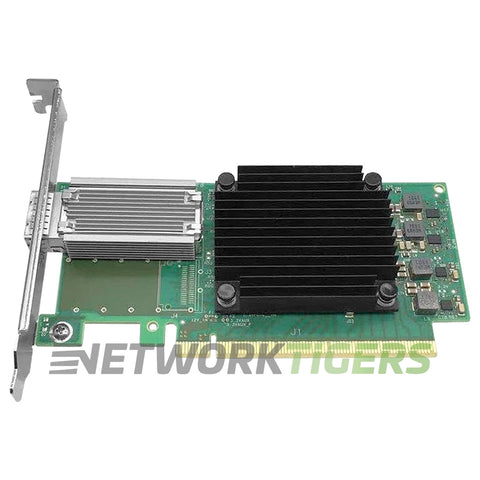

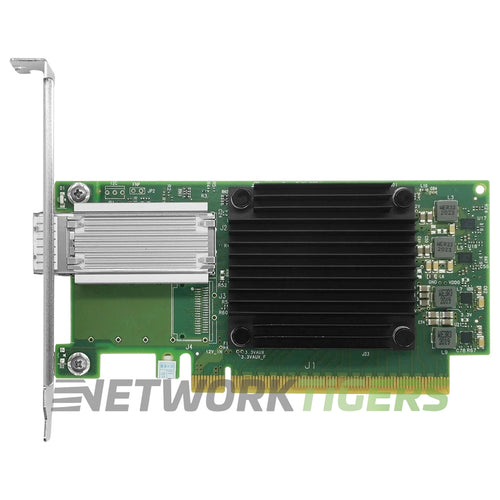

NVIDIA Mellanox MCX515A-CCAT: ConnectX-5 EN Network Interface Card, 100GbE Single-Port QSFP28, PCIe3.0 x16, Tall&Short Bracket.
- Module Type : Network Interface Card
- Network Ports : 1x 100 Gigabit QSFP28
- Host Interface : PCIe 3.0 x16
- Controller : MT28800 Family ConnectX-5
- nVidia SKU : 900-9X5AD-0016-ST1
- Performance : 100 Gbps Per Port
- Model Number : MCX515A-CCAT
- Part Number : MCX515A-CCAT, 900-9X5AD-0016-ST1
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia MCX515A-CCAT ConnectX-5 1x 100GB QSFP28 PCIe3.0 x 16 Interface Card as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
