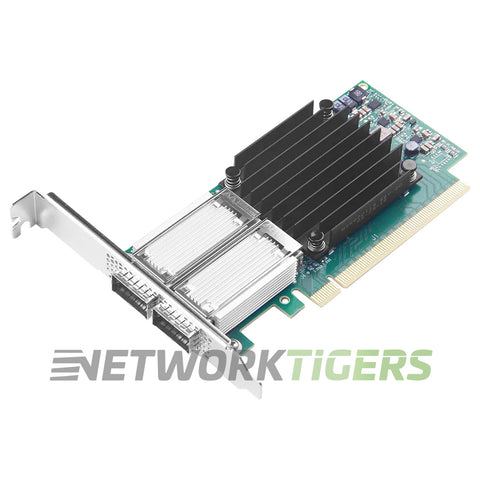

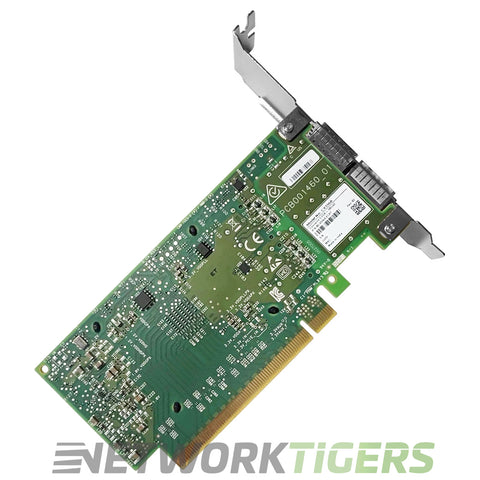

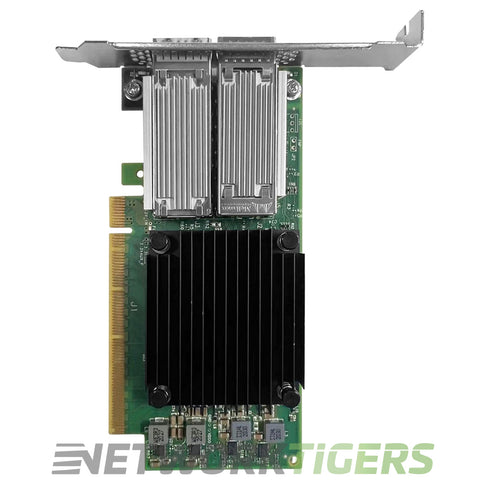

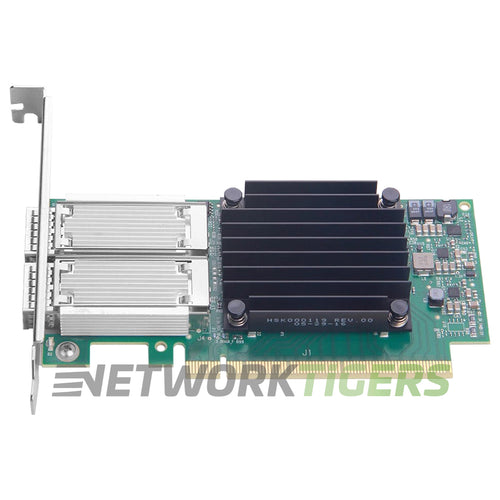

The nVidia MCX556A-ECAT is a Mellanox ConnectX-5 Series Network Interface Card in PCIe form factor. It provides 2x QSFP28 ports supporting Ethernet speeds of 10/25/40/50/100 Gb/s and InfiniBand support for SDR, DDR, QDR, FDR, and EDR rates.
Compatible with standard server platforms using x16 PCI Express slots. Supports dual-port operation via two QSFP28 interfaces suitable for high-throughput computing or storage clusters. Requires typical slot-based power delivery; no external power supply needed.
Mellanox ConnectX-5 Dual Port 100GbE QSFP28 VPI NIC PCIe 3.0 x16 Network Adapter.
- Module Type : Network Interface Card
- Network Ports : 2x 100 Gigabit Ethernet QSFP28
- Series : Mellanox ConnectX-5 Series
- PCI Express Connector : PCIe Gen 3.0 x16 - SerDes @ 8.0GT/s
- Performance : InfiniBand = SDR/DDR/QDR/FDR/EDR, Ethernet = 10/25/40/50/100 Gb/s
- Model Number : MCX556A-ECAT
- Part Number : MCX556A-ECAT
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia Mellanox MCX556A-ECAT ConnectX-5 2x 100GB QSFP28 PCIe 3.0 x16 NIC as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
