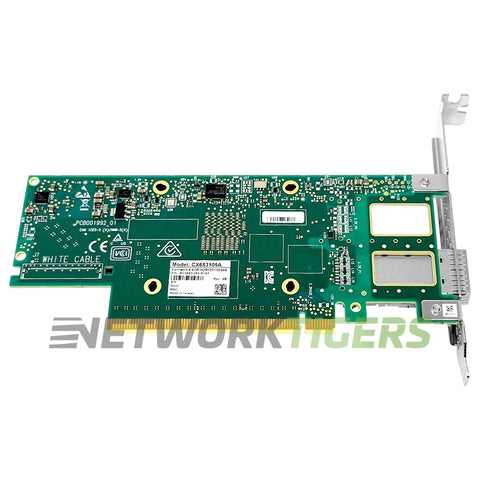

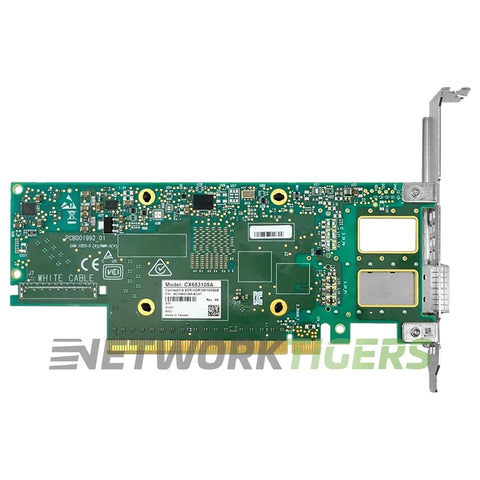

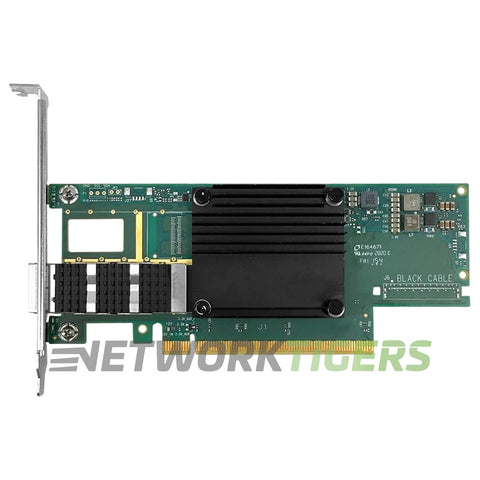

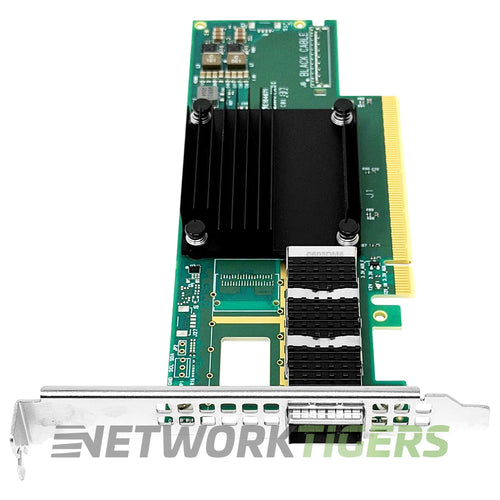

The nVidia Mellanox MCX653105A-ECAT is a PCIe Gen3/4 x16 Network Interface Card (NIC) featuring one 100 Gigabit QSFP56 port. It supports SERDES rates of 8.0 GT/s and 16 GT/s, with compatibility for earlier versions PCIe 2.0 and 1.1.
This single-port NIC operates at up to 100 Gbps per port using the QSFP56 interface on standard full-height form factor cards. It is suitable for servers requiring high-speed point-to-point data transmission over Ethernet or InfiniBand protocols where applicable by model support.
nVidia Mellanox MCX653105A-ECAT: ConnectX-6 EDR/HDR 100GB Ethernet Adapter.
- Module Type : Network Interface Card
- Network Ports : 1x 100 Gigabit QSFP56
- PCIe Gen3/4 : SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible)
- Performance : 100 Gbps Per Port
- nVidia SKU : 900-9X6AF-0016-ST1
- Model Number : MCX653105A-ECAT
- Part Number : MCX653105A-ECAT, 900-9X6AF-0016-ST1
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia Mellanox MCX653105A-ECAT ConnectX-6 1x 100GB QSFP56 Interface Card as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
