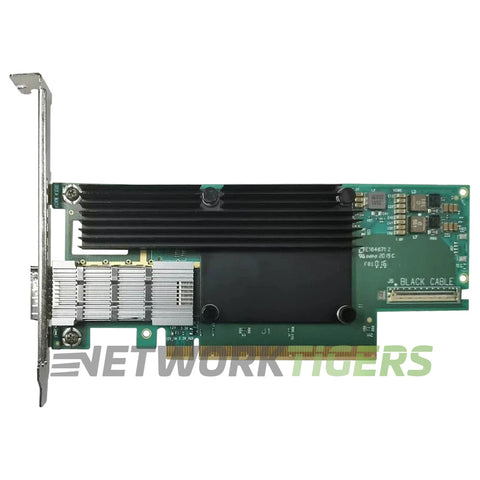

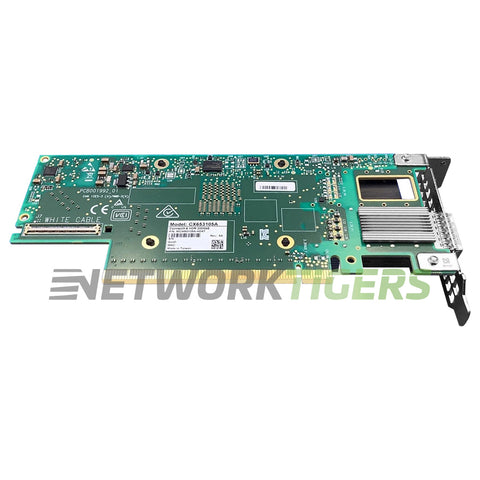

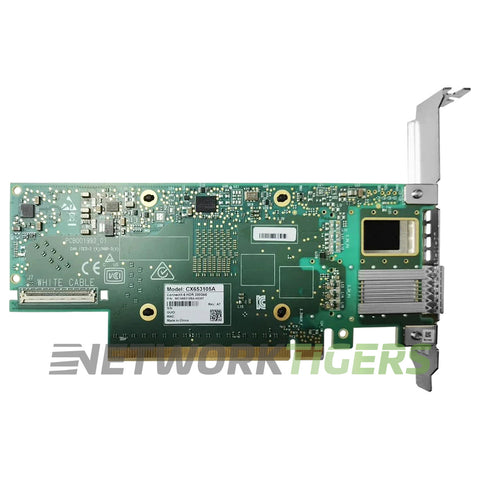

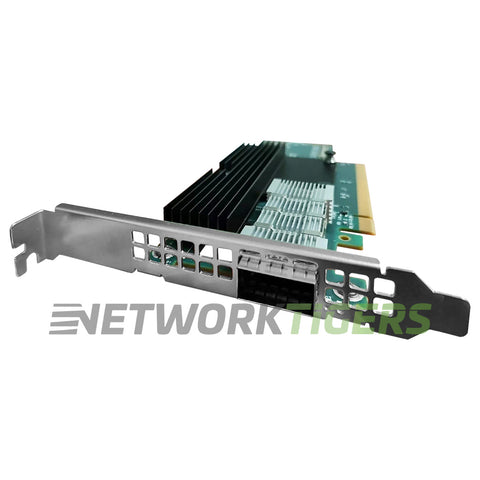

The nVidia Mellanox MCX653105A-HDAT is a half-height, half-length PCIe 3.0/4.0 x16 network interface card with one QSFP56 port supporting Ethernet speeds up to 200 Gb/s and InfiniBand modes including SDR through HDR.
Compatible with systems that support low-profile PCIe slots, this NIC supports both Ethernet (10/25/40/50/100/200 Gb/s) and multiple InfiniBand data rates such as DDR, QDR, FDR, EDR, HDR100 , and HDR . It features one uplink via the QSFP56 connector for high-throughput connectivity in servers or HPC environments requiring dense bandwidth options within standard form factors.
nVidia Mellanox MCX653105A-HDAT: ConnectX-6 InfiniBand/Ethernet adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, PCIe3.0/4.0 x16, tall bracket.
- Module Type : Network Interface Card
- Network Ports : 1x 200 Gigabit QSFP56
- Form Factor : PCIe Half Height, Half Length
- PCIe Support : PCIe3.0/4.0 x16
- Performance : Ethernet = 10/25/40/50/100/200 Gb/s, InfiniBand = SDR, DDR, QDR, FDR, EDR, HDR100, HDR
- nVidia SKU : 900-9X6AF-0018-MT2
- Model Number : MCX653105A-HDAT
- Part Number : MCX653105A-HDAT, 900-9X6AF-0018-MT2
- Condition : New
- One (1) NEW nVidia Mellanox MCX653105A-HDAT 1x 200GB QSFP56 PCIe3.0/4.0 x16 NIC as described above
