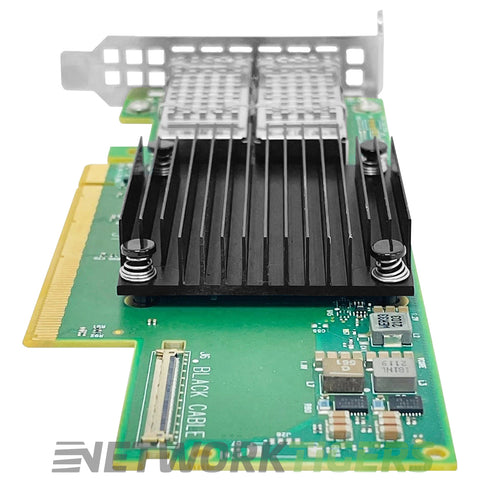

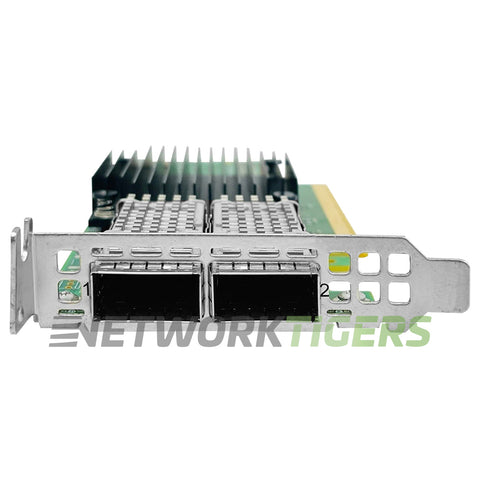

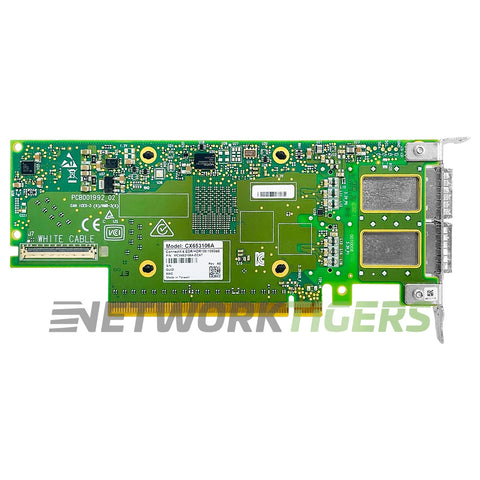

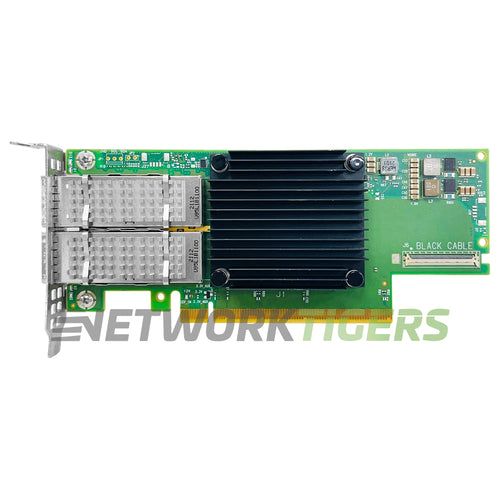

The nVidia MCX653106A-ECAT (SKU: 900-9X6AF-0056-MT1) is a PCIe Half Height, Half Length Network Interface Card supporting two QSFP56 ports. It features a host interface of PCIe 3.0/4.0 x16 and supports Ethernet speeds of 10/25/40/50/100 Gb/s and InfiniBand modes SDR to HDR100.
This NIC offers dual-port connectivity for high-speed network applications using standard QSFP56 connectors. Suitable for systems with compatible low-profile expansion slots, it allows mounting in constrained enclosures due to its compact form factor (167.65 mm × 68.90 mm).
nVidia MCX653106A-ECAT: ConnectX-6 InfiniBand/Ethernet adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket.
- Module Type : Network Interface Card
- Network Ports : 2x 100 Gigabit Ethernet QSFP56
- Form Factor : PCIe Half Height, Half Length / 167.65mm x 68.90mm
- Host Interface : PCIe3.0/4.0 x16
- Performance : Ethernet = 10/25/40/50/100 Gb/s. InfiniBand = SDR, DDR, QDR, FDR, EDR, HDR100
- nVidia SKU : 900-9X6AF-0056-MT1
- Model Number : MCX653106A-ECAT
- Part Number : MCX653106A-ECAT, 900-9X6AF-0056-MT1
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia MCX653106A-ECAT 900-9X6AF-0056-MT1 2x 100GB QSFP56 PCIe3.0/4.0 x16 NIC as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
