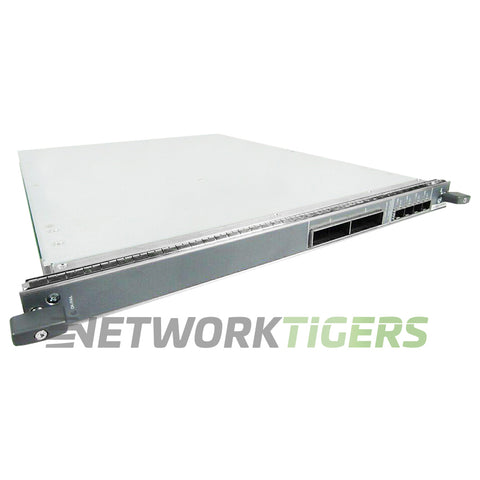

NEW Juniper MPC5E-100G10G 2x 100GB QSFP28 4x 10GB SFP+ Router Line Card
New

NEW Juniper MPC5E-100G10G 2x 100GB QSFP28 4x 10GB SFP+ Router Line Card

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2346

Overview

The Juniper MPC5E-100G10G Line Card delivers 240 Gbps of throughput and supports high-speed connectivity with two 100 Gigabit Ethernet QSFP28 ports and four 10 Gigabit Ethernet SFP+ uplink ports.

Designed for compatibility within the MX Series routers, it offers support for both large-scale data handling requirements and efficient traffic routing capabilities in stringent workloads. The dual QSFP28 interfaces allow connections to modern core or aggregation layers, while the quad SFP+ provides expanded options at lower interface speeds.

Juniper MPC5E-100G10G: Fixed 2x 100GbE and 4x 10GbE line card bundle with full scale L2/L2.5 and reduced scale L3 features, optional license permits up to 32,000 queues with HQoS.


Specifications

  • Module Type : 2x 100 Gigabit Ethernet QSFP28
  • Network Ports : 4x 10 Gigabit Ethernet SFP+
  • Module Slots : LAN-PHY mode - 10.3125 Gbps per-port, WAN-PHY mode - 9.95328 Gbps per-port
  • Queues : 32,000 per-slot w/HQoS (requires optional license)
  • Performance : 240 Gbps (Throughput)
  • Designed For : Juniper MX2000 Universal Routing Platform Series
  • Model Number : MPC5E-100G10G
  • Part Number : MPC5E-100G10G
  • Condition : New


Included

  • One (1) NEW Juniper MPC5E-100G10G 2x 100GB QSFP28 4x 10GB SFP+ Router Line Card as described above
