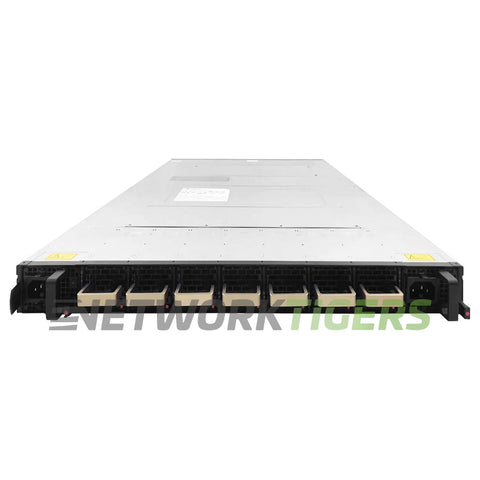

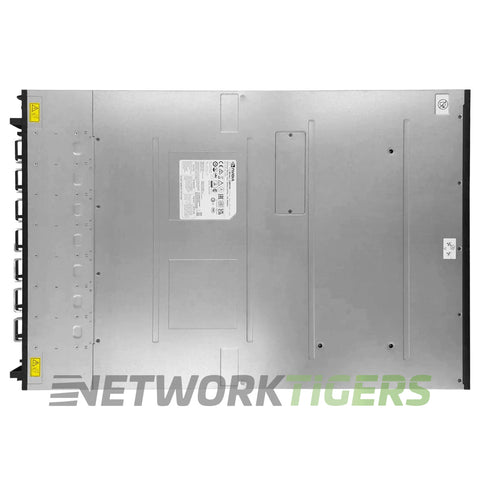

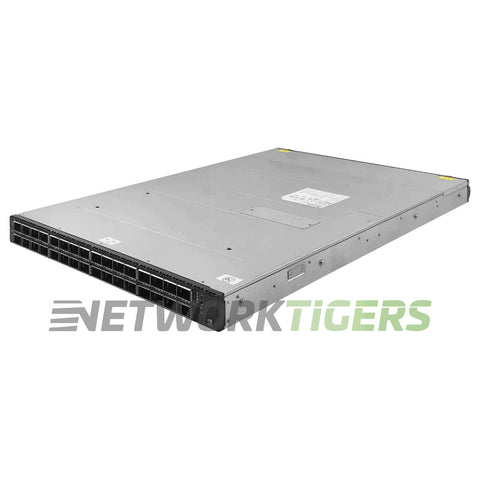

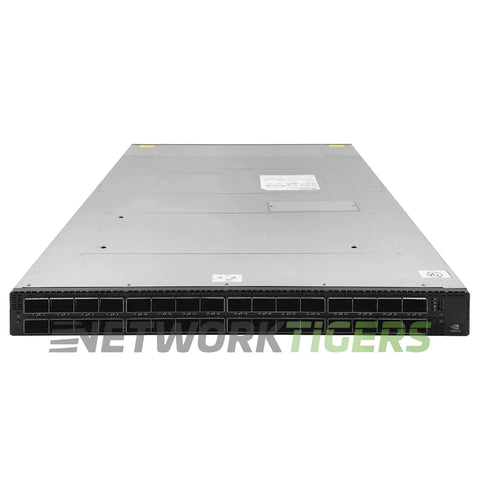

The NVIDIA Mellanox MQM9790-NS2F is a 1U, rack-mountable switch featuring 32 OSFP ports supporting up to 400 GbE transmission speeds. Manufactured by NVIDIA, this un-managed unit supports front-to-back airflow and is designed for high-bandwidth data center applications.
This model provides non-blocking line-rate connectivity across all ports with passive cooling design considerations. It uses an AC power supply configuration and requires compatible OSFP-based optics or cables for deployment. Designed primarily as part of NVIDIA’s Quantum network series, it functions within InfiniBand HDR environments but may interoperate in Ethernet-capable modes depending on firmware support.
nVidia Mellanox MQM9790-NS2F: 64-ports NDR, 32 OSFP ports, unmanaged, P2C airflow (forward).
- Network Ports : 32x 400 Gigabit OSFP
- Management Ports : 1x USB 3.0, x1 1x USB for I2C channel, 1x RJ45, 1x RJ45 (UART)
- Switch Version : MLNX-OS
- System Memory : Single 8GB, 2,666 mega transfers per second (MT/s), DDR4 SO-DIMM
- AirFlow Direction : Front-to-Back Airflow
- Fan Modules : 7x MTEF-FANF-L Fan Modules Included
- Power Supplies : 2x MTEF-PSF-AC-J Power Supplies Included
- Storage : M.2 SSD SATA 16GB 2242 FF
- CPU : x86 Coffee Lake i3
- Model Number : MQM9790-NS2F
- Part Number : MQM9790-NS2F, 920-9B210-00FN-0D0
- Condition : New
- One (1) NEW nVidia Mellanox MQM9790-NS2F 32x 400GB OSFP Un-Managed F-B Airflow Switch as described above
