The Cisco Meraki MR33 is an indoor Wi-Fi 5 (802.11ac Wave 2) access point managed from the Meraki Dashboard. It has a 2.4 GHz and a 5 GHz client radio, each 2x2 MU-MIMO with 2 spatial streams, for an aggregate frame rate of up to 1.3 Gbps.
A third dual-band radio is dedicated to WIDS/WIPS security scanning and automatic RF optimization, so the client radios keep serving users while the AP watches the air. An integrated Bluetooth Low Energy radio adds beacons and BLE scanning. The antennas are internal and omnidirectional, so there is nothing to attach or aim.
The uplink is one Gigabit RJ-45 port. The MR33 runs on standard 802.3af PoE, so any PoE switch port can power it, and it also accepts a 12V DC adapter, sold separately. The MA-MNT-MR-11 mount kit is included, with a mount plate, drop-ceiling clips, T-rail screws, wall anchors, and security screws. The compact housing suits offices, classrooms, clinics, and shops with moderate client counts.
For Wi-Fi 6 at the same 2x2 level, see the MR36-HW. For 3x3 radios and more capacity, the MR42-HW is the step up. Without a PoE switch, the MA-INJ-4-US 802.3at PoE+ injector powers the AP. The access point is sold unclaimed; a Meraki license is required, purchased separately.

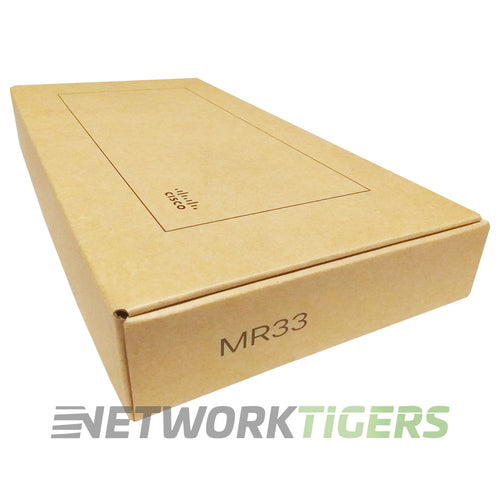

This Cisco Meraki MR33-HW access point is new and covered by the NetworkTigers one-year warranty. The original packaging may have been opened to inspect the contents.
- Wi-Fi Standard : Wi-Fi 5 (802.11ac Wave 2)
- Managed By : Cisco Meraki Dashboard (cloud)
- Licensing : Unclaimed - Meraki license required, sold separately
- Suggested Use : Indoor - offices, schools, clinics, shops
- Region : US (FCC)
- Radios : 2.4 GHz and 5 GHz client radios plus dual-band WIDS/WIPS scanning radio
- Spatial Streams per Radio : 2x2 MU-MIMO with 2 spatial streams on each band
- Maximum Data Rate : 1.3 Gbps aggregate
- Bluetooth / IoT Radios : BLE radio - beacon and BLE scanning
- PoE Standard : 802.3af PoE (37-57V)
- DC Power Input : 12V DC input - adapter sold separately
- Uplink Ports : 1x 10/100/1000 RJ-45
- Antenna Type : Internal omnidirectional
- Antenna Ports : None (internal antennas)
- Mounting Options : Desk, wall, or ceiling - MA-MNT-MR-11
- Mounts Included : Yes - MA-MNT-MR-11 kit
- Model Number : MR33-HW
- Part Number : MR33-HW, MR33-HW=, MR33-HW-WS
- Condition : New
- One (1) NEW Cisco Meraki MR33-HW Wi-Fi 5 802.11ac Internal Ant Unclaimed WAP w/ Mounts as described above
