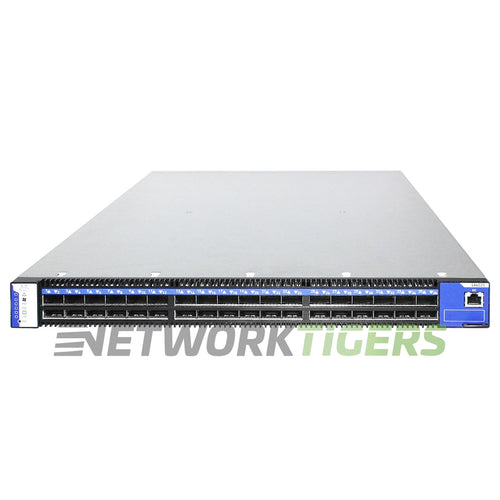

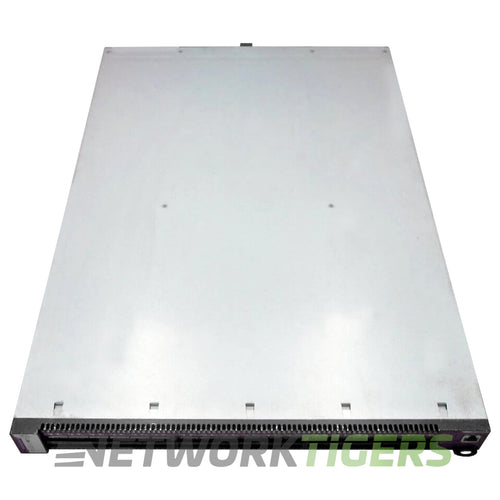

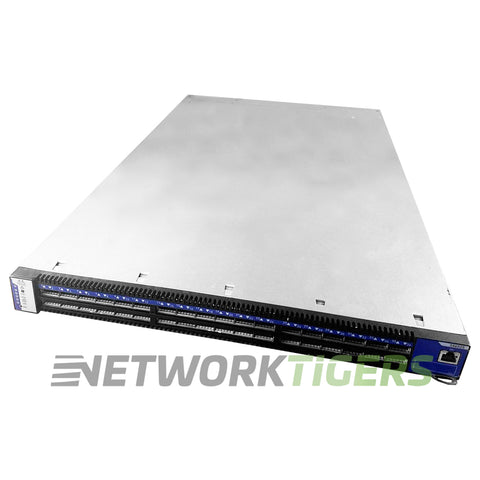

The NVIDIA Mellanox MSX6025F-1SFS is a 56Gb/s FDR InfiniBand switch with 36 QSFP ports in 1U, built on the SwitchX-2 chip. It connects servers in HPC clusters, labs and storage networks running FDR or older QDR InfiniBand.
Choose the SX6025 when your fabric already runs a subnet manager on a server or a managed switch. It is externally managed, so it costs less than the managed SX6036 with the same 36 ports. It needs a back-to-front airflow rack.
nVidia Mellanox MSX6025F-1SFS: SwitchX-2 based 36-port QSFP FDR 56Gb/s, 1U, externally managed, 1 power supply, standard depth, P2C airflow (back-to-front).
- Network Ports : 36x 56Gigabit QSFP28 non blocking ports with aggregate throughput up to 4.032 Tb/s (FDR)
- Product Family : Mellanox SX6025 Series
- Management Ports : 1x RJ45 Serial Console
- Switch Version : FDR InfiniBand Technology
- Fan Modules : 1x Hot Swappable Fan Unit - Back-to-Front Airflow (P2C)

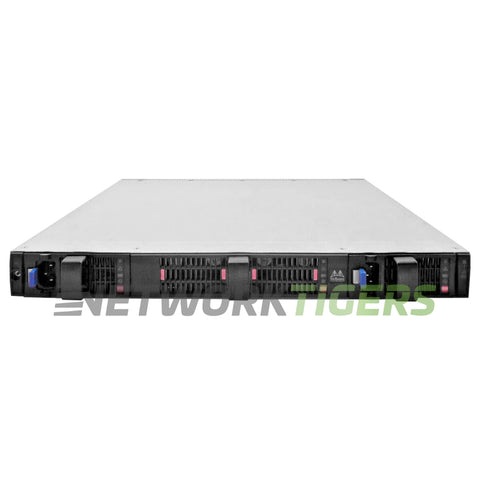

- Power Supplies : 2x PSU Slots - Dual Redundant - Back-to-Front Airflow (P2C)
- Switching Capacity : 4 Tbps
- Latency : Port-to-port latency 200ns
- Model Number : MSX6025F-1SFS
- Part Number : MSX6025F-1SFS
- Condition : Seller refurbished
- One (1) Seller refurbished Nvidia Mellanox MSX6025F-1SFS Infiniband 36x 56GB QSFP28 B-F Airflow (P2C) FDR as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
