NEW Cisco NIM-4MFT-T1/E1 ISR 4000 Series 4x T1/E1 Router Module

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

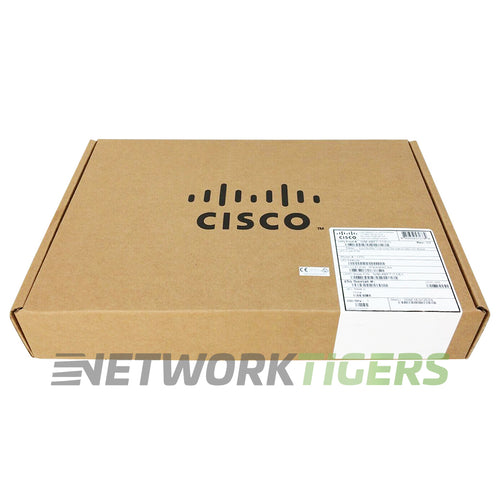

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3175
UPC: 882658572784

Overview

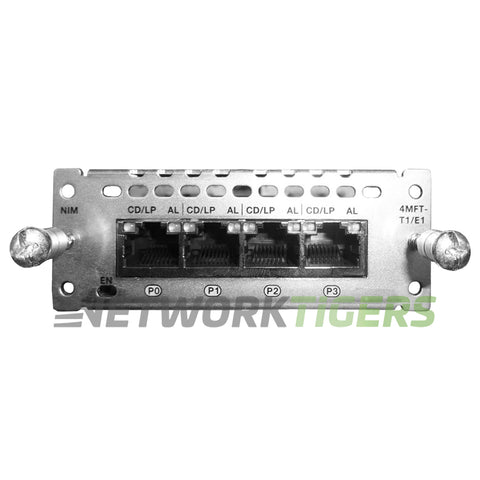

The Cisco NIM-4MFT-T1/E1 is a four-port Multiflex Trunk (MFT) T1/E1 Network Interface Module for Cisco ISR 4000 Series routers. Each port runs full or fractional T1 or E1 with two data channel-groups, mixing data and packet voice, and an integrated DSU/CSU with drop-and-insert removes the external CSU.

The card has one PVDM4 slot; voice needs a PVDM4, which also gives echo cancellation up to 128 ms. Data needs the IP Base package and voice at least the Unified Communications (UC) package. It is not supported on the 2900 and 3900 Series.

A seller refurbished unit of this module is also listed. For voice, add a PVDM4 such as the new PVDM4-32 32-channel DSP module.

This listing ships one module as listed in Item Includes. This Cisco NIM-4MFT-T1/E1 module is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 4x Multi-flex Trunk Voice/Clear-channel Data T1/E1 ports
  • Designed For : ISR 4000 Series
  • Clear-Channel Data : Yes
  • MFT Packet Voice : Yes
  • Model Number : NIM-4MFT-T1/E1
  • Part Number : NIM-4MFT-T1/E1, NIM-4MFT-T1/E1=, NIM-4MFT-T1/E1-WS
  • Condition : New


Included

  • One (1) NEW Cisco NIM-4MFT-T1/E1 ISR 4000 Series 4x T1/E1 Router Module as described above
