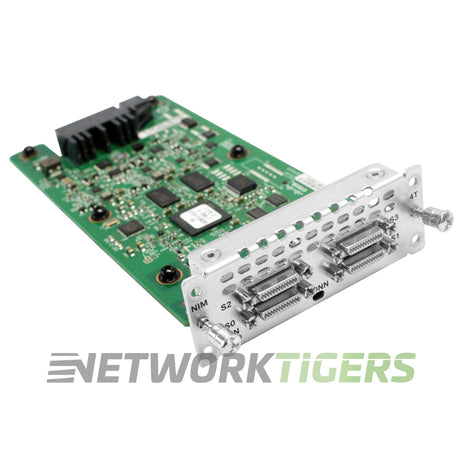

The Cisco NIM-4T is a single-wide Network Interface Module with four synchronous serial WAN ports on Cisco Smart Serial connectors. Cisco's serial NIM data sheet names the ISR 4451-X as the platform, with up to three of these modules per router and no slot restrictions.
Each port runs up to 8 Mbps and supports EIA-232, EIA-449, EIA-530, EIA-530A, V.35 and X.21 through Smart Serial DTE or DCE cables, the same cables as the HWIC-4A/S. It carries HDLC, PPP and Frame Relay, not bisync or X.25.
For a single serial port, see the NIM-1T one-port serial module. The ISR4451-X/K9 router is the platform named in Cisco's serial NIM data sheet.
This listing ships one module as listed in Item Includes. This seller refurbished Cisco NIM-4T serial module is tested, working, and covered by the NetworkTigers one-year warranty.
- Module Type : WAN Network Interface Card
- Network Ports : 4x Serial WAN Port (EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21)
- Performance : Synchronous maximum speed (per port) - 8 Mbps
- Designed For : Cisco ISR 4451-X
- Model Number : NIM-4T
- Part Number : NIM-4T, NIM-4T=, NIM-4T-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco NIM-4T ISR 4000 Series 4x Serial WAN Router Interface Card as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
